Chain Counter IRIS II

  • Flybridge chain counter
  • Technologically advanced
  • Elegant and ergonomic design
  • Suitable for all types of boat cockpits
  • Advanced microprocessor
  • With different operations allowing for οptimum anchoring
  • New larger display
  • Chain speed indicator / mooring length in meters or feet
  • Voltage indicator • Up alarm sensor
  • Key tones adjustment
  • High-vision LCD display 3” / Backlit display screen / Eight level of contrast
  • Six language menu (IT, EN, FR, DE, ES, GR)
  • Able to control free fall windlasses
  • Parallel connection
  • New push-in termination connector does not require specialty tool
  • Available in grey & black colour
Get in touch
Code Description Voltage Command Transmission Number of buttons Operative Temperature IP Protection rated Max contacts Amperage Weight Dimensions Color

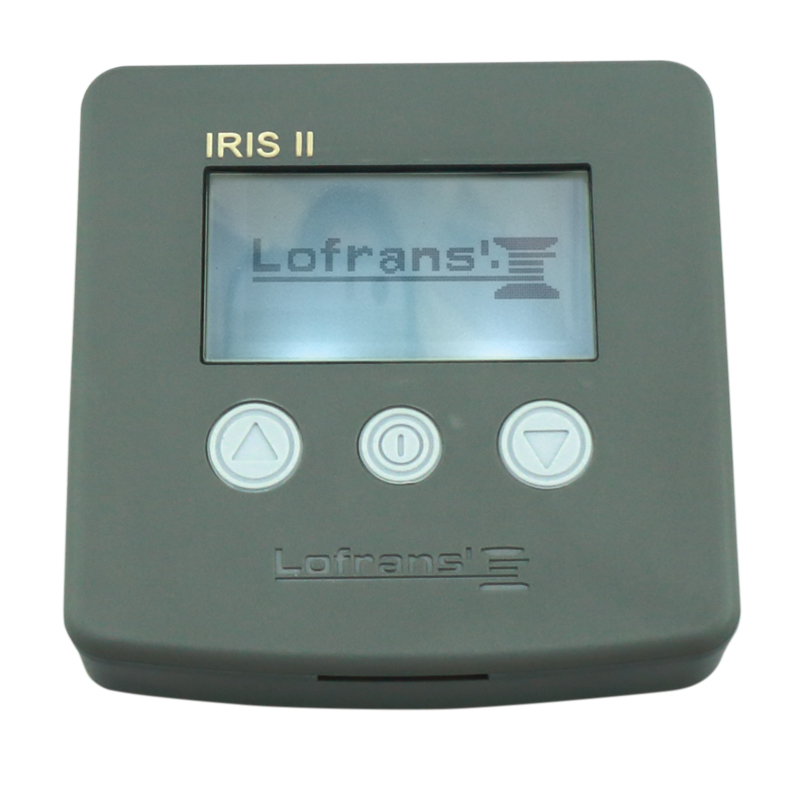

[] PANEL CHAINCOUNTER IRIS II, GREY image
PANEL CHAINCOUNTER IRIS II, GREY 12-24 Vdc Wire 3 -10 to +60 67 2 225g 110x105x15 (5 flat version) Grey

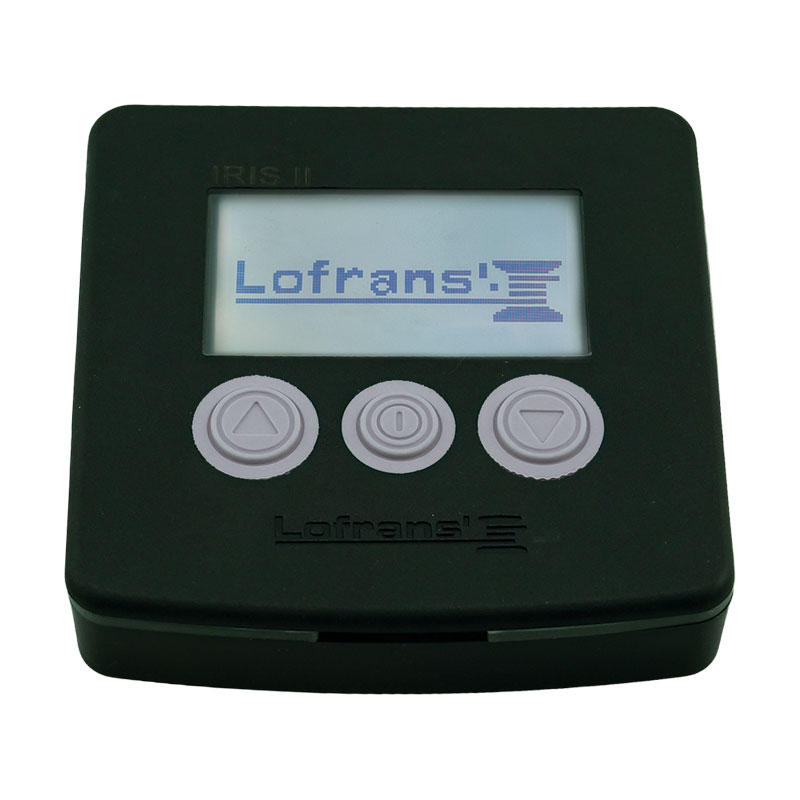

[] PANEL CHAINCOUNTER IRIS II, BLACK image
PANEL CHAINCOUNTER IRIS II, BLACK 12-24 Vdc Wire 3 -10 to +60 67 2 225g 110x105x15 (5 flat version) Black
