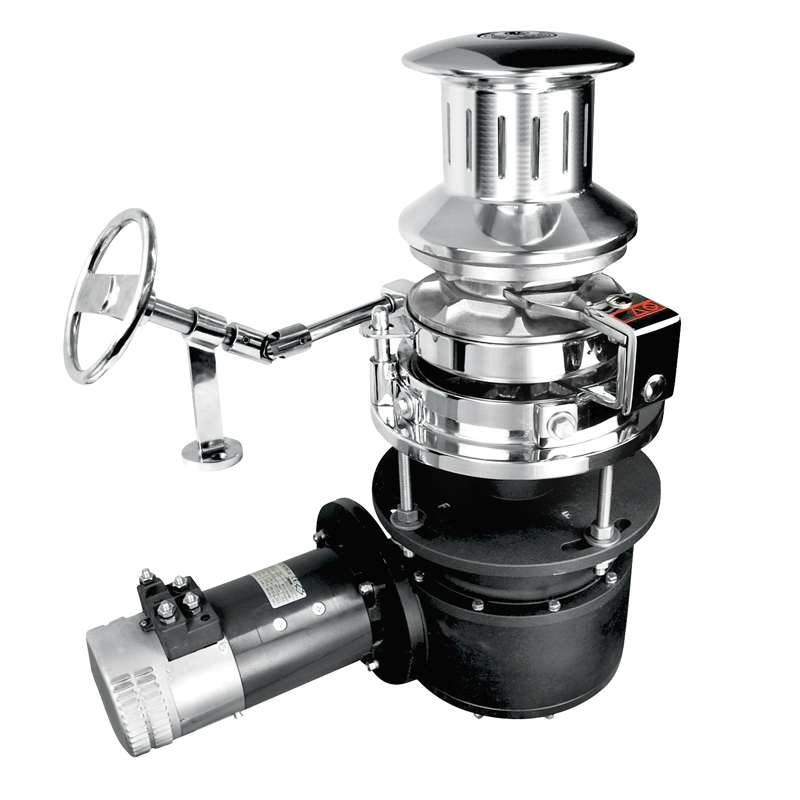

Ercole Verticale - Vertical Windlass

Main Features:

• Under-deck compact dimensions
• Construction in mirror polished AISI 3 16L stainless steel
• High torque latest generation electric motor able to provide the power needed in all marine conditions
• Band brake to assist in chain control, thanks to an easy-to-manage large handwheel
• Special high-grip drum with independent rotation from the Gypsy, for warping function
• Indepent Gypsy and drum operation
• Manual chain release
• Manual override to recover the chain and anchor in case of electrical failure
• Internal ratchet to prevent chain jams into the chain cocker which could damage the deck
• Chain counter support integrated by the sensor inserted in the base and the magnet in the Gypsy
• Available also in counter clockwise rotation
• High efficiency Lofrans planetary-worm screw gearbox made in anodised black aluminium with gears made in high mechanical strength material
• Heavy duty electric motor
• Power: DC, AC and hydraulic
• Available in custom versions

Standard Equipment:

• Dual direction solenoid pack (only for 24V version)
• Handle
• Gypsy for chain
• CD / Instruction manual
