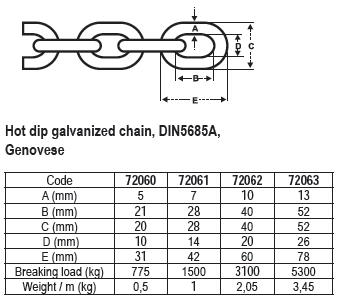

Hot dip galvanized chain DIN5685A, Genovese
Hot dip galvanized chain DIN5685A, Genovese
| Code | Description | Dimensions C (mm) | Dimensions D (mm) | Breaking Load (Kg) | Weight | Dimensions E (mm) | Dimensions A (mm) | Pack (m) | Dimensions B (mm) | Type |
|---|---|---|---|---|---|---|---|---|---|---|
![[] Chain, Hot-Dip Galvanized, DIN5685A, Diam. 5mm, Genovese image](https://www.marineselectionitems.com/images/items/itm_72060__063.jpg)
|
Chain, Hot-Dip Galvanized, DIN5685A, Diam. 5mm, Genovese | 20 | 10 | 775 | 0,5 | 31 | 5 | 50 | 21 | DIN5685A |
|
|
Chain, Hot-Dip Galvanized, DIN5685A, Diam. 7mm, Genovese | 28 | 14 | 1500 | 1 | 42 | 7 | 50 | 28 | DIN5685A |
|
|
Chain, Hot-Dip Galvanized, DIN5685A, Diam. 10mm, Genovese | 40 | 20 | 3100 | 2,05 | 60 | 10 | 50 | 40 | DIN5685A |
|
|
Chain, Hot-Dip Galvanized, DIN5685A, Diam. 13mm, Genovese | 52 | 26 | 5300 | 3,45 | 78 | 13 | 50 | 52 | DIN5685A |
