LION 1000 - Horizontal Windlass
Main Features:
- Automatic free fall available (optional)*
- White polyester coating
- Manual chain release
- Rope chain management by the spring loaded finger
- Chain counter magnet pre-setting as standard
- IP67 motor cover
- Control Box included in package
* with automatic free fall installed
Standard Equipment:
- Dual direction solenoid pack
- Handle
- Gypsy for chain & rope
- QR code for Instruction manual
| Code | Description |
|---|---|
| 610001 | WINDLASS H. LION 1000 ALU 700W/12V 6-3/16"BBB |
| 610002 | WINDLASS H. LION 1000 ALU 700W/12V 8-5/16"BBB-5/16"HT |
| 610003 | WINDLASS H. LION 1000 ALU F. F 700W/12V 6-3/16"BBB |
| 610004 | WINDLASS H. LION 1000 ALU F. F 700W/12V 8-5/16"BBB-5/16"HT |

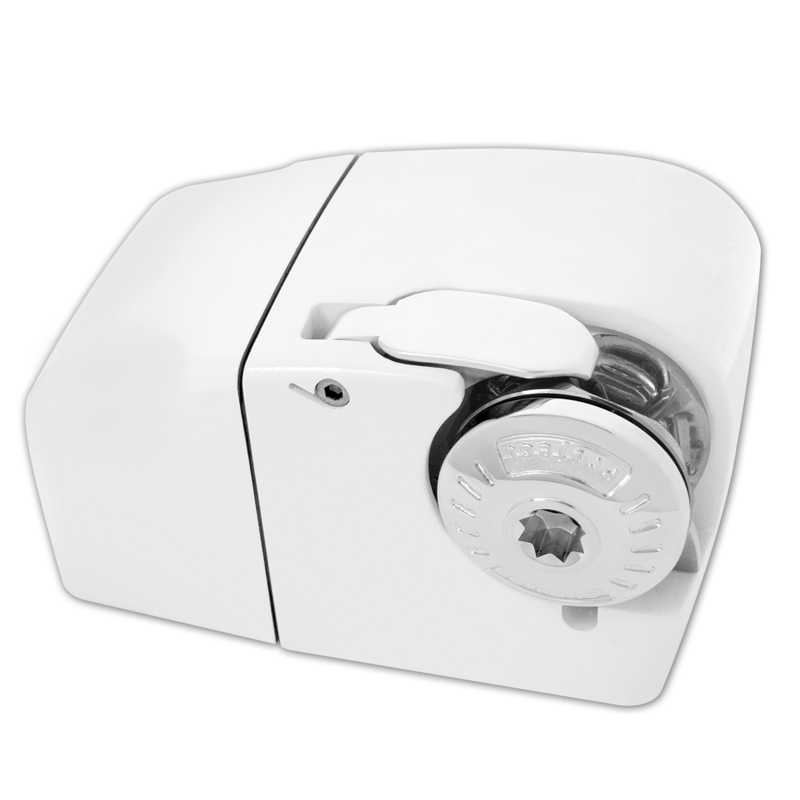

![[] WINDLASS H. LION 1000 W.ALU 700W/12V 6-3/16 BBB image](https://www.marineselectionitems.com/images/items/itm_LION.jpg)
|
WINDLASS H. LION 1000 W.ALU 700W/12V 6-3/16 BBB |
|
|
WINDLASS H. LION 1000 W.ALU 700W/12V 8-5/16 BBB-5/16 HT |
|
|
WINDLASS H. LION 1000 W.ALU F. F 700W/12V 6-3/16 BBB |
|
|
WINDLASS H. LION 1000 W.ALU F. F 700W/12V 8-5/16 BBB-5/16 HT |
Installation Manuals
