Lofrans' Anchor ALPHA
• Top holding power Delta Type anchor
• Hot-dip Galvanized
• Equipped with a lead-filled tip to ensure stability and consistent recovery
• Available in 10 different sizes
| Code | Description | Weight | Dimensions A (mm) | Dimensions C (mm) | Dimensions D (mm) | Dimensions B (mm) | Dimensions E (mm) | Dimensions F (mm) |
|---|---|---|---|---|---|---|---|---|

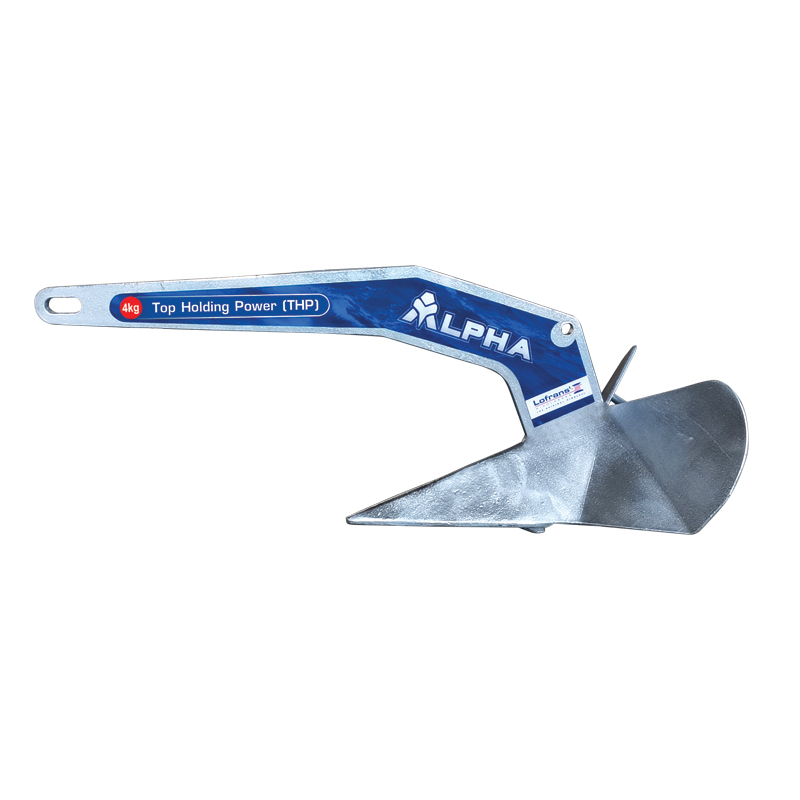

![[] Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 4kg image](https://www.marineselectionitems.com/images/items/itm_75460__469.jpg)
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 4kg | 4kg | 217 | 230 | 8 | 514 | 210 | 387 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 6kg | 6kg | 254 | 265 | 10 | 593 | 243 | 450 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 10kg | 10kg | 293 | 310 | 12.5 | 695 | 282 | 526 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 16kg | 16kg | 339 | 362 | 12.5 | 812 | 328 | 614 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 20kg | 20kg | 370 | 392 | 16 | 877 | 357 | 663 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 25kg | 25kg | 397 | 415 | 16 | 945 | 387 | 713 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 32kg | 32kg | 425 | 453.5 | 20 | 1023 | 435 | 833 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 40kg | 40kg | 461 | 489 | 20 | 1099 | 435 | 833 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 50kg | 50kg | 486 | 523 | 20 | 1175 | 479 | 890 |
|
|
Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-dipped Galvanized, 63kg | 63kg | 537 | 567 | 22 | 1270 | 508 | 963 |
