Marking Buoys Bi-Conical
Made of rigid plastic. A metal eyelet reinforces the ring. Available in two filling options: empty or foam filled. Designed & produced in Italy.

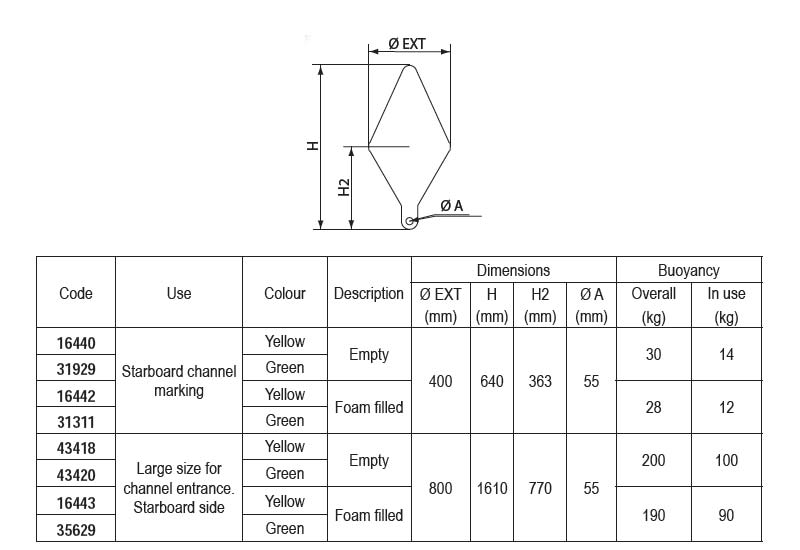

| Code | Description | H2 | ØA | Buoyancy | H | Color | Description | Use | External Diameter |
|---|---|---|---|---|---|---|---|---|---|
![[] Marking Buoy, Bi-conical, Ext.Ø400mm, Yellow image](https://www.marineselectionitems.com/images/items/itm_16440_16442_43418_16443.jpg)
|
Marking Buoy, Bi-conical, Ext.Ø400mm, Yellow | 363 mm | 38mm | overall:30kg/ In use:14kg | 640 mm | Yellow | empty | Starboard channel marking | 400 mm |
|
|
Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Yellow | 363 mm | 38mm | overall:28kg/in use:12kg | 640 mm | Yellow | foam | Starboard channl marking | 400 mm |
|
|
Marking Buoy, Bi-conical, Foam Filled, Ext.Ø800mm, Yellow | 770 mm | 55 mm | overall:190kg/in use:90kg | 1610 mm | Yellow | foam | Large size for channel entrance.Starboard size | 800 mm |
![[] Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Green image](https://www.marineselectionitems.com/images/items/itm_31929_31311_43420_35629.jpg)
|
Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Green | 363 mm | 38 mm | overall:28kg/ In use:12kg | 640 mm | Green | foam | Starboard channel marking | 400 mm |
|
|
Marking Buoy, Bi-conical, Ext.Ø400mm, Green | 363 mm | 38mm | overall:30kg/ In use:14kg | 640 mm | Green | empty | Starboard | 400mm |
|
|
Marking Buoy, Bi-conical, Foam Filled, Ext.Ø800mm, Green | 770 mm | 55 mm | overall:190kg/in use:90kg | 1610 mm | Green | foam | Large size for channel entrance.Starboard size | 800 mm |
|
|
Marking Buoy, Bi-conical, Ext.Ø800mm, Yellow | 770 mm | 55 mm | overall:200Kg/in use:100Kg | 1610 mm | Yellow | empty | Large size for channel entrance.Starboard size | 800 mm |
|
|
Marking Buoy, Bi-conical, Ext.Ø800mm, Green | 770 mm | 55 mm | overall:200Kg/in use:100Kg | 1610 mm | Green | empty | Large size for channel entrance.Starboard size | 800 mm |
