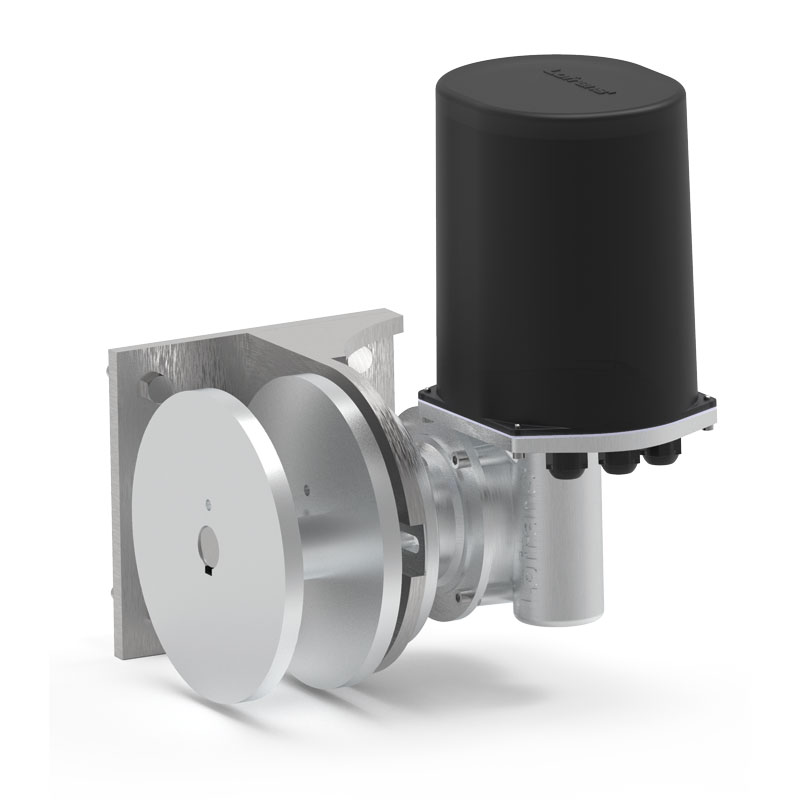

TENDER CAPSTAN ALU 1000W/24V

tr>td]:p-3 [&>tr]:border-b [&>tr]:border-primary-100 dark:[&>tr]:border-primary-700 [&>*]:text-primary-500 dark:[&>*]:text-primary-300">

• Designed to recover a small tender or a jet ski

• Marine anodised aluminium construction

• Heavy-duty electric motor and gearbox

• IP67-rated motor cover with high protection from humidity & sea water

• Strong aluminium drum able to contain the necessary belt

• The drum is driven by using a high torque worm gear box with the gear case made in black marine anodised aluminium

• The gears are made of bronze and steel in order to withstand the high stress during the intensive use

• Wall-mounted installation

Get in touch

Code	Description	Power	Net Weight with drum (Kg)	motor size	Max Pull	Working Load (kg)	Amps at Working Load (A)	Line speed at working load (m/min)	Max Line Speed (m/min)
	TENDER CAPSTAN ALU 1000W/24V	24 V	9-10 kg	1000 W	1060	200 kg	135 \| 70	23(m/min)	40(m/min)
