X2- Vertical Windlass Dark Version
Main Features
• Special watertight stainless steel ball bearing in the base
• With drum or low profile
• Independent gypsy and drum operation
• Rope and chain combinaton gypsy
• Manual chain release
• Manual override available
• Rope chain management by the spring loaded arm
• Chain counter magnet pre-installed as standard
• IP67 motor cover
• Marine anodised aluminium gearbox
Standard Equipment
• Dual direction solenoid pack
• Handle
• Gypsy for chain & rope
• QR code card for Instruction Manual
| Code | Description |
|---|---|

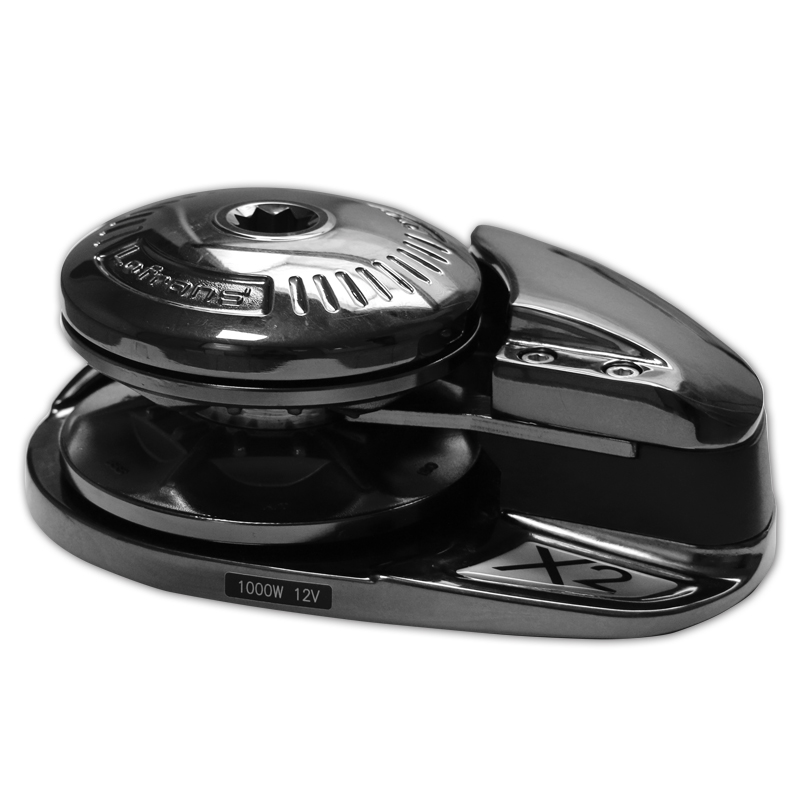

![[] WINDLASS V. X2 DARK 1000W/12V 8-5/16BBB-5/16HT image](https://www.marineselectionitems.com/images/items/itm_X2_Black_Low Profile.jpg)
|
WINDLASS V. X2 DARK 1000W/12V 8-5/16BBB-5/16HT |

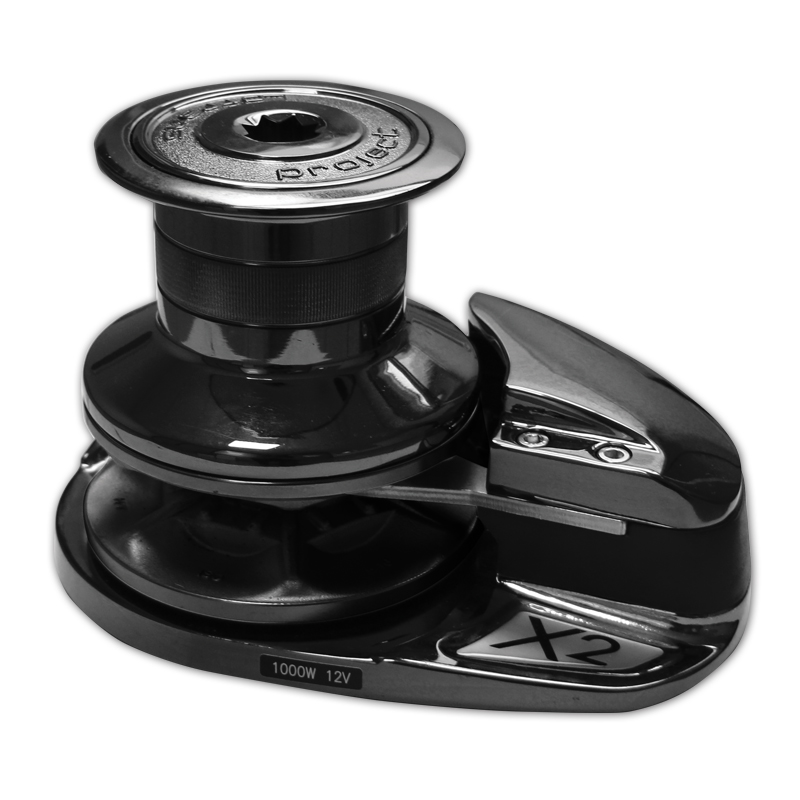

![[] WINDLASS V. X2 DARK G+D 1000W/12V 8-5/16BBB-5/16HT image](https://www.marineselectionitems.com/images/items/itm_X2_Black_With Drum.jpg)
|
WINDLASS V. X2 DARK G+D 1000W/12V 8-5/16BBB-5/16HT |
|
|
WINDLASS V. X2 DARK 1000W/12V 10 3/8 HT |
|
|
WINDLASS V. X2 DARK G+D 1000W/12V 10 3/8 HT |
|
|
WINDLASS V. X2 DARK 1000W/12V 10DIN766 |
|
|
WINDLASS V. X2 DARK G+D 1000W/12V 10DIN766 |
| 636845 | WINDLASS V. X2 DARK 1000W/24V 8-5/16BBB-5/16HT |
| 636846 | WINDLASS V. X2 DARK G+D 1000W/24V 8-5/16BBB-5/16HT |
