Eye bolt, w/ nut & washer, ΑISI 316

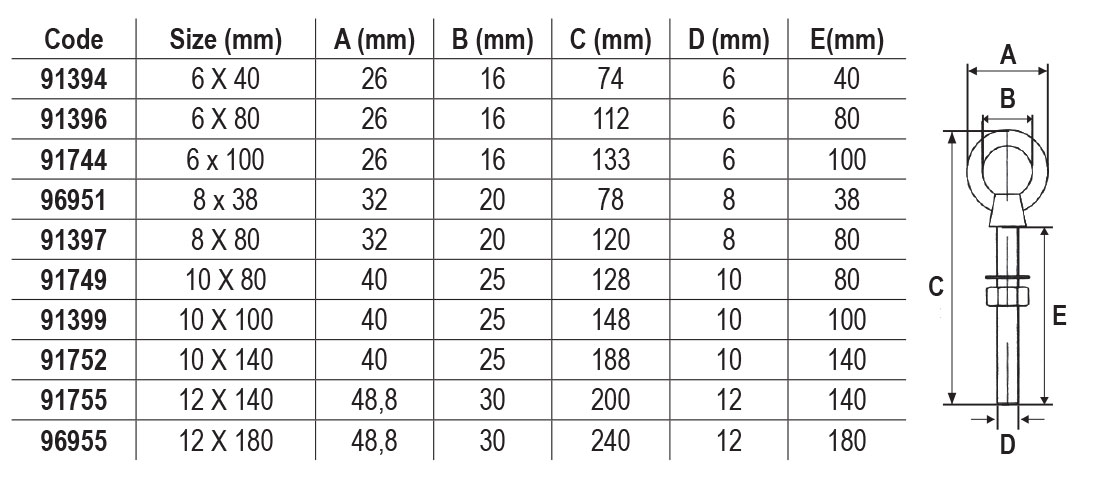

| Code | Description | Dimensions C (mm) | Size | Dimensions A (mm) | Dimensions B (mm) | Dimensions D (mm) | Dimensions E (mm) | T.D.L. | R.W.L. |
|---|---|---|---|---|---|---|---|---|---|
![[] Eye Bolt, w/nut & washer, Inox 316, 6x40mm image](https://www.marineselectionitems.com/images/items/itm_91394__400.jpg)
|
Eye Bolt, w/nut & washer, Inox 316, 6x40mm | 68,6 | 6x40 | 20,4 | 13,2 | 5,8 | 42,2 | 1000 | 70 |
|
|
Eye Bolt, w/nut & washer, Inox 316, 6x80mm | 109,1 | 6x80 | 20,5 | 13,2 | 5,8 | 82,2 | 1000 | 70 |
|
|
Eye Bolt, w/nut & washer, Inox 316, 8x80mm | 113,1 | 8x80 | 23,8 | 17,1 | 7,8 | 80 | 1300 | 140 |
![[] Eye Bolt, w/nut & washer, Inox 316, 10x100mm image](https://www.marineselectionitems.com/images/items/itm_91398__400.jpg)
|
Eye Bolt, w/nut & washer, Inox 316, 10x100mm | 136,8 | 10x100 | 28,3 | 16,2 | 9,8 | 100,1 | 1700 | 230 |
![[] Eye Bolt w/nut & washer, Inox 316, 6x100mm image](https://www.marineselectionitems.com/images/items/itm_90449_91742__756_96951_96954__955_96959.jpg)
|
Eye Bolt w/nut & washer, Inox 316, 6x100mm | 128,7 | 6x100 | 20,5 | 13,1 | 5,8 | 101,5 | 1100 | 275 |
|
|
Eye Bolt w/nut & washer, Inox 316, 10x80mm | 116,2 | 10x80 | 28,3 | 16,5 | 9,8 | 80,3 | 2600 | 650 |
|
|
Eye Bolt w/nut & washer, Inox 316, 10x140mm | 179,5 | 10x140 | 28,3 | 16,5 | 9,8 | 141,3 | 2600 | 650 |
|
|
Eye Bolt w/nut & washer, Inox 316, 12x140mm | 180,1 | 12x140 | 32,1 | 19,3 | 11,8 | 142,3 | 3400 | 850 |
|
|
Eye bolt, w/nut & washer, Inox 316, 8x40mm | 71,1 | 8x38 | 23,8 | 17,1 | 7,8 | 40,6 | 1300 | 325 |
|
|
Eye Bolt, w/nut & washer, Inox 316, 12x180mm | 220,2 | 12x180 | 32,1 | 19,4 | 11,7 | 180,2 | 3400 | 850 |
