U bolt, AISI 316 w/ thread
| Code | Description | Dimensions C (mm) | Dimensions D (mm) | Dimensions A (mm) | Dimensions B (mm) | Thread | Capacity Load |
|---|---|---|---|---|---|---|---|

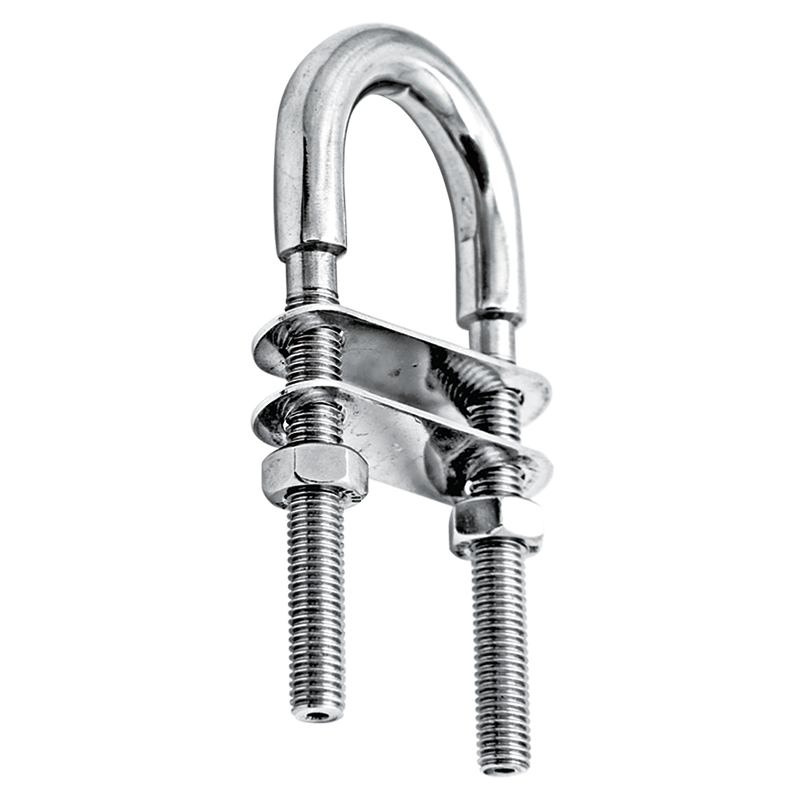

![[] U Βolt, Inox 316, W35mm, L 60mm, ø6mm, w/thread M5 image](https://www.marineselectionitems.com/images/items/itm_91364__373.jpg)
|
U Βolt, Inox 316, W35mm, L 60mm, ø6mm, w/thread M5 | 60 | 25 | 6 | 35 | M5 | 1000 Kgs |
|
|
U Βolt, Inox 316, W35mm, L 80mm, ø7mm, w/thread M5 | 80 | 30 | 6 | 35 | M5 | 1000 Kgs |
|
|
U Βolt, Inox 316, W35mm, L 80mm, ø8mm, w/thread M6 | 80 | 30 | 8 | 35 | M6 | 1500 Kgs |
|
|
U Βolt, Inox 316, W35mm, L60mm, ø10mm, w/thread M8 | 60 | 25 | 10 | 35 | M8 | 3000 Kgs |
|
|
U Βolt, Inox 316, W. 35mm, L 80mm, ø10mm,, w/ thread M8 | 80 | 30 | 10 | 35 | M8 | 3000 Kgs |
|
|
U Βolt, Inox 316, W45mm, L100mm, ø10mm, w/thread M8 | 100 | 38 | 10 | 45 | M8 | 3000 Kgs |
|
|
U Βolt, Inox 316, W35mm, L130mm, ø10mm, w/thread M8 | 130 | 30 | 10 | 45 | M8 | 3000 Kgs |
|
|
U Βolt, Inox 316, W50mm, L90mm, ø12mm, w/thread M10 | 90 | 35 | 12 | 50 | M10 | 4200 Kgs |
|
|
U Βolt, Inox 316, W50mm, L130mm, ø12mm, w/thread M10 | 130 | 40 | 12 | 50 | M10 | 4200 Kgs |
|
|
U Βolt, Inox 316,W65mm, L155mm, ø14mm, w/thread M12 | 155 | 50 | 14 | 60 | M12 | 6500 Kgs |
