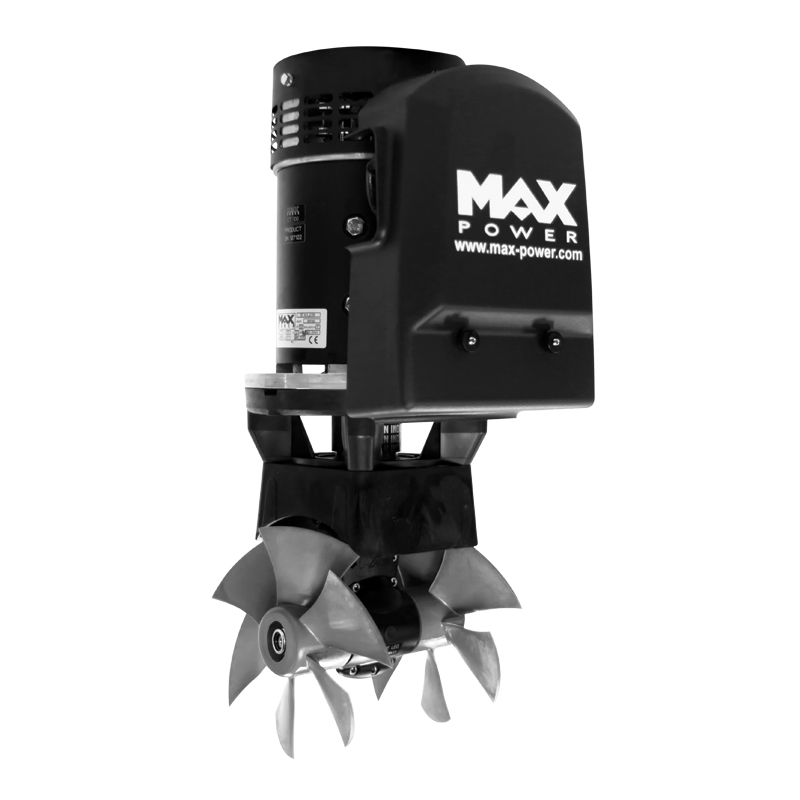

Electric Tunnel Thruster CT 100

The 12V, twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’

Product Description

The 12V, twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs).

The CT100, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range

• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
