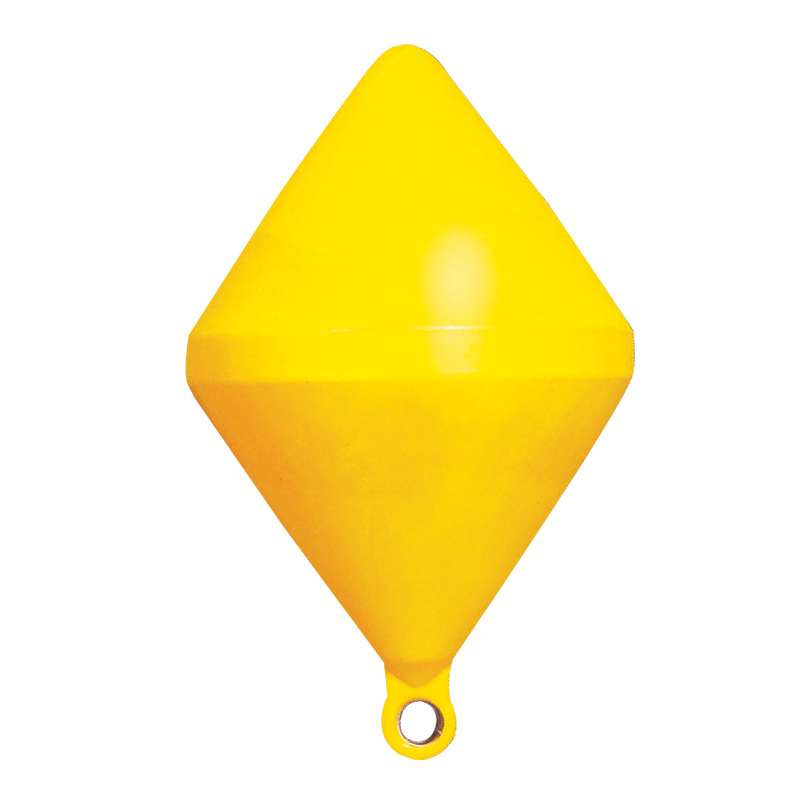

Marking Buoys Bi-Conical

Made of rigid plastic. A metal eyelet reinforces the ring.

Product Description

Made of rigid plastic. A metal eyelet reinforces the ring. Available in two filling options: empty or foam filled. Designed & produced in Italy.

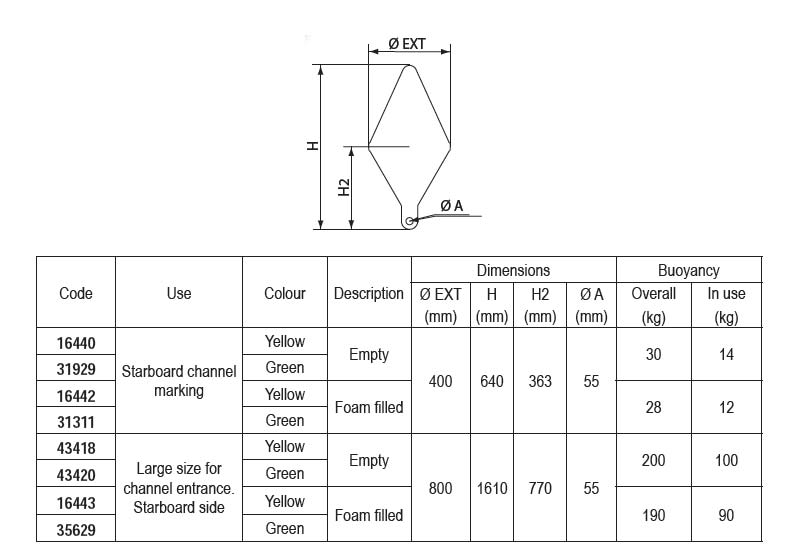

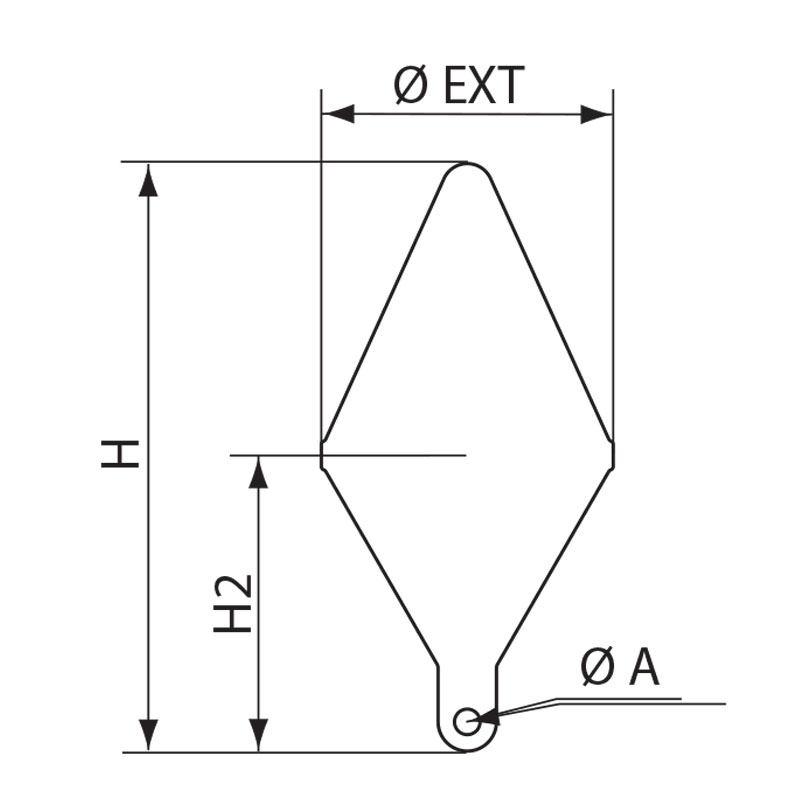

Code	Description	Color	Description	Buoyancy	ØA	H	Use	External Diameter	H2
16440	Marking Buoy, Bi-conical, Ext.Ø400mm, Yellow	Yellow	empty	overall:30kg/ In use:14kg	38mm	640 mm	Starboard channel marking	400 mm	363 mm
16442	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Yellow	Yellow	foam	overall:28kg/in use:12kg	38mm	640 mm	Starboard channl marking	400 mm	363 mm
16443	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø800mm, Yellow	Yellow	foam	overall:190kg/in use:90kg	55 mm	1610 mm	Large size for channel entrance.Starboard size	800 mm	770 mm
31311	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø400mm, Green	Green	foam	overall:28kg/ In use:12kg	38 mm	640 mm	Starboard channel marking	400 mm	363 mm
31929	Marking Buoy, Bi-conical, Ext.Ø400mm, Green	Green	empty	overall:30kg/ In use:14kg	38mm	640 mm	Starboard	400mm	363 mm
35629	Marking Buoy, Bi-conical, Foam Filled, Ext.Ø800mm, Green	Green	foam	overall:190kg/in use:90kg	55 mm	1610 mm	Large size for channel entrance.Starboard size	800 mm	770 mm
43418	Marking Buoy, Bi-conical, Ext.Ø800mm, Yellow	Yellow	empty	overall:200Kg/in use:100Kg	55 mm	1610 mm	Large size for channel entrance.Starboard size	800 mm	770 mm
43420	Marking Buoy, Bi-conical, Ext.Ø800mm, Green	Green	empty	overall:200Kg/in use:100Kg	55 mm	1610 mm	Large size for channel entrance.Starboard size	800 mm	770 mm
