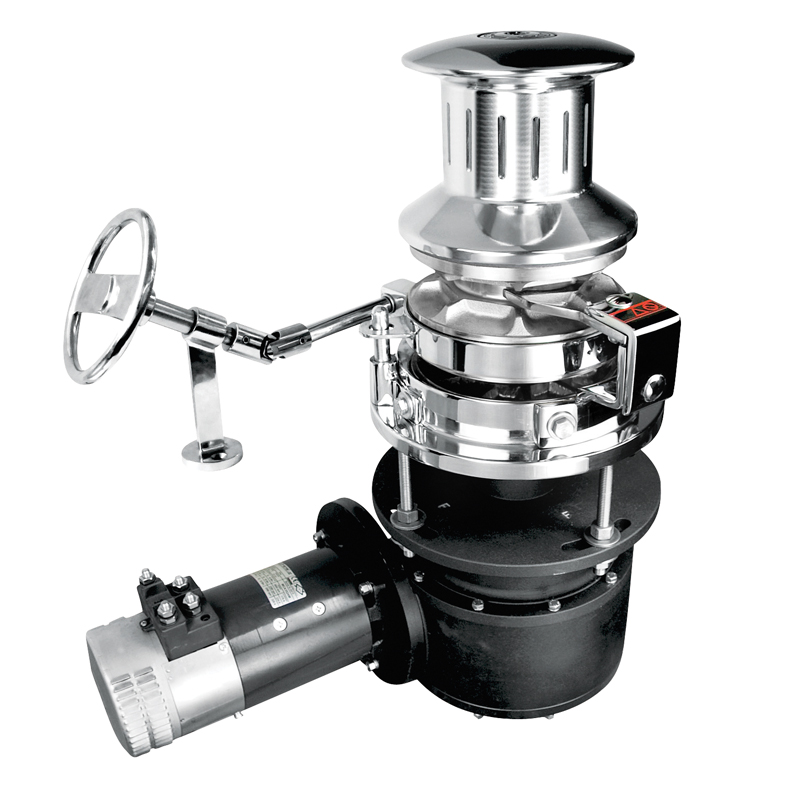

Ercole Verticale - Vertical Windlass
Ercole Vertical Windlass main features includes Under-deck compact dimensions, Construction in mirror polished AISI 3 16L stainless steel, High torque latest generation electric motor able to provide the power needed, etc
Product Description
Main Features:
- Under-deck compact dimensions
- Construction in mirror polished AISI 3 16L stainless steel
- High torque latest generation electric motor able to provide the power needed in all marine conditions
- Band brake to assist in chain control, thanks to an easy-to-manage large handwheel
- Special high-grip drum with independent rotation from the Gypsy, for warping function
- Indepent Gypsy and drum operation
- Manual chain release
- Manual override to recover the chain and anchor in case of electrical failure
- Internal ratchet to prevent chain jams into the chain cocker which could damage the deck
- Chain counter support integrated by the sensor inserted in the base and the magnet in the Gypsy
- Available also in counter clockwise rotation
- High efficiency Lofrans planetary-worm screw gearbox made in anodised black aluminium with gears made in high mechanical strength material
- Heavy duty electric motor
- Power: DC, AC and hydraulic
- Available in custom versions
Standard Equipment:
- Dual direction solenoid pack (only for 24V version)
- Handle
- Gypsy for chain
- CD / Instruction manual

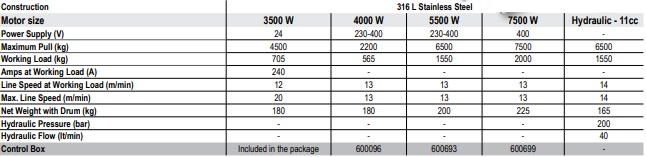

Items / Versions
Code | Description |
---|---|
600080 | WINDLASS V. ERC. S/S G+D CW 3500W/24V 14mm |
600081 | WINDLASS V. ERC. S/S G+D CCW 3500W/24V 14mm |
600082 | WINDLASS V. ERC. S/S G+D CW 4000W/400V 14mm |
600083 | WINDLASS V. ERC. S/S G+D CCW 4000W/400V 14mm |
600308 | WINDLASS V. ERC. S/S G+D CCW 3500W/24V 16mm |
600310 | WINDLASS V. ERC. S/S G+D CW 3500W/24V 16mm |
600363 | WINDLASS V. ERC. S/S G+D CCW 4000W/400V 16mm |
600367 | WINDLASS V. ERC. S/S G+D CW 4000W/400V 16mm |
600408 | WINDLASS V. ERC. S/S R. G+D 5500W/400V 16mm |
600409 | WINDLASS V. ERC. S/S G+D CW 5500W/400V 16mm |
602523 | WINDLASS V. ERC. S/S G+D HYD/ 14mm |
602524 | WINDLASS V. ERC. S/S R. G+D HYD/ 14mm |
602525 | WINDLASS V. ERC. S/S G+D HYD/ 16mm |
602526 | WINDLASS V. ERC. S/S R. G+D HYD/ 16mm |
636078 | WINDLASS V.ERC. S/S G+D 7500W EB 3PH 50HZ 400V 17,5STUDL SHORT ROLL. W/ JOINT-BRAKE 25° D.THICK.100 |
636079 | WINDLASS V.ERC. S/S R.G+D 7500W EB 3PH 50HZ 400V 17,5STUDL SHORT ROLL. W/ JOINT-BRAKE 25°D.THICK.100 |
