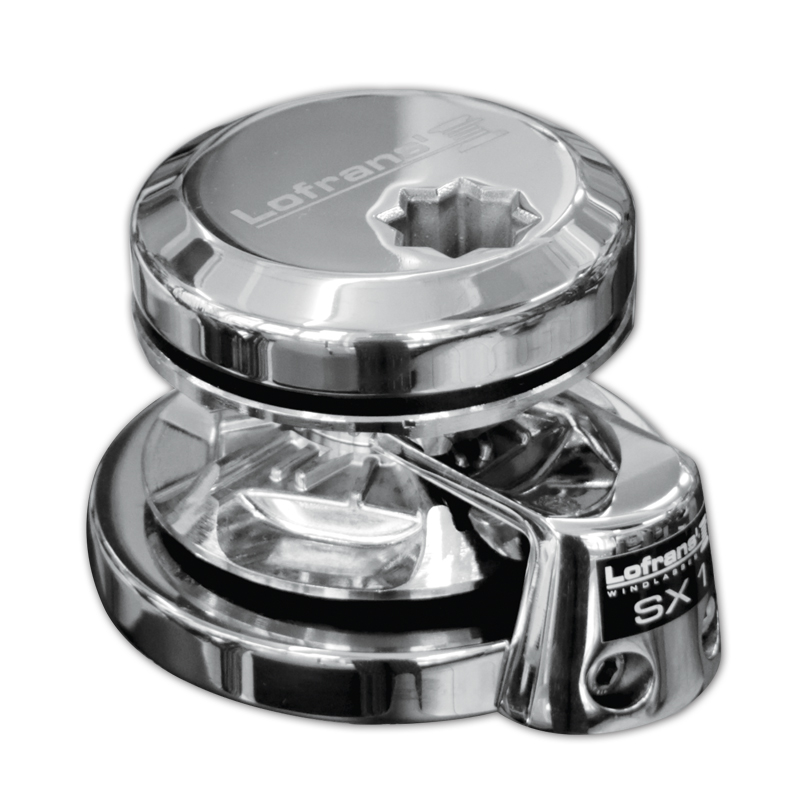

SX1 - Vertical Windlass
Main features:
- Compact round base design
- Marine AISI 316L stainless steel construction
- Independent gypsy and drum operation
- Manual chain release
- Chain counter magnet pre-installed as standard
- IP67 rated heavy-duty electric motor
- Anodised marine aluminium gearbox
- Chain pipe available as an option
Standard Equipment:
- Dual direction solenoid pack
- Handle
- Gypsy for chain
- CD / Instruction manual
- Chain pipe also available as an option, code 636431
Product Description
The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.
The standard features that you can meet in every SX series windlass are:
- Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
- The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
- The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
- There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
- Compact round base design constructed with Marine AISI 316L Stainless Steel
Items / Versions
Code | Description |
---|---|
636279 | WINDLASS V. SX1 INOX ROUND 500W/12V 6-3/16"BBB |
636280 | WINDLASS V. SX1 INOX ROUND 800W/12V 8-5/16"BBB-5/16"HT |
636281 | WINDLASS V. SX1 INOX ROUND 800W/12V 6-3/16"BBB |
