Product Description
|

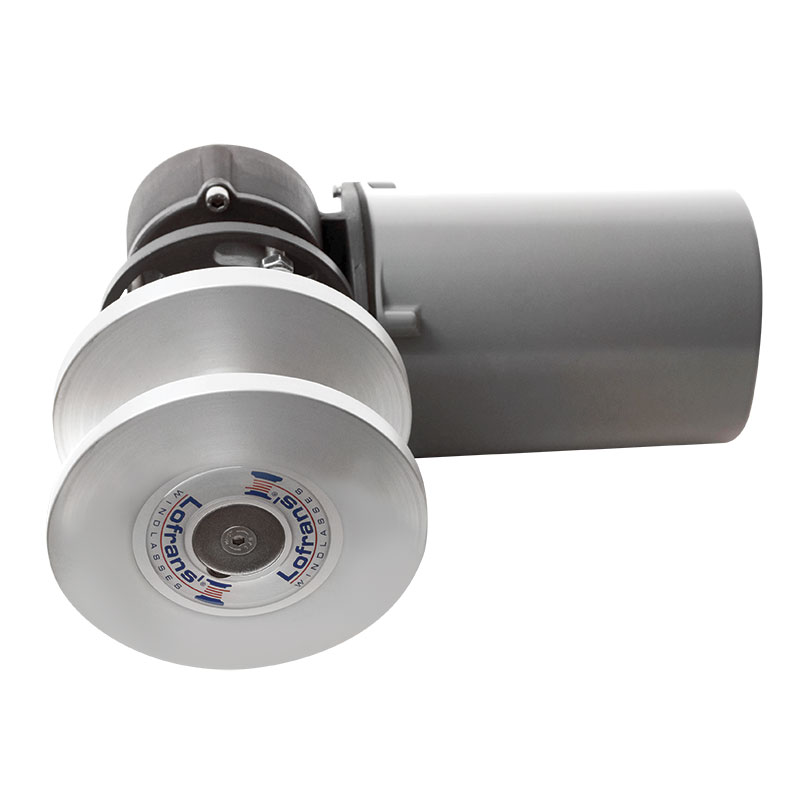

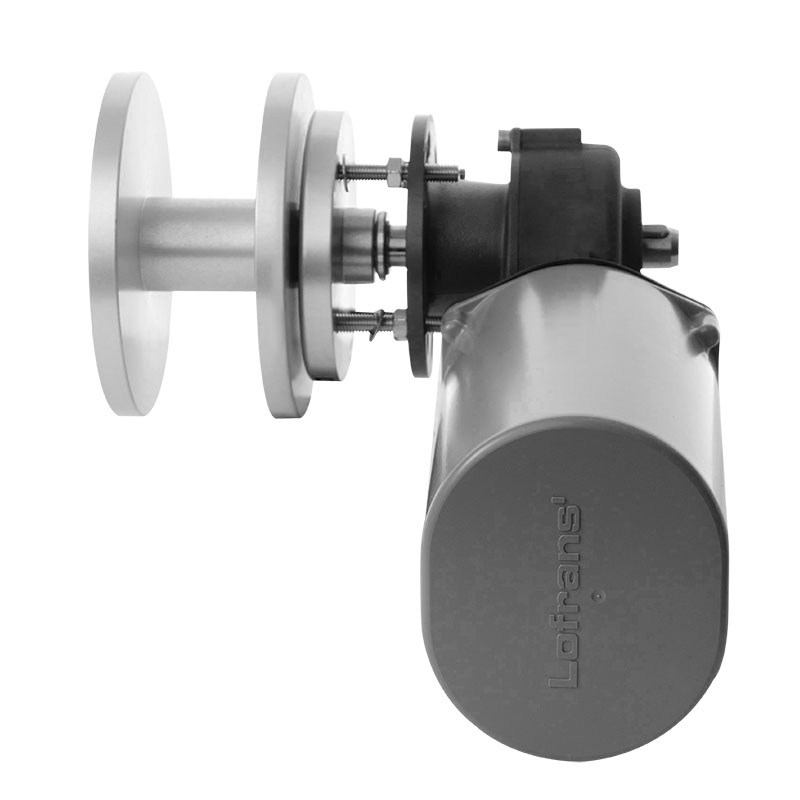

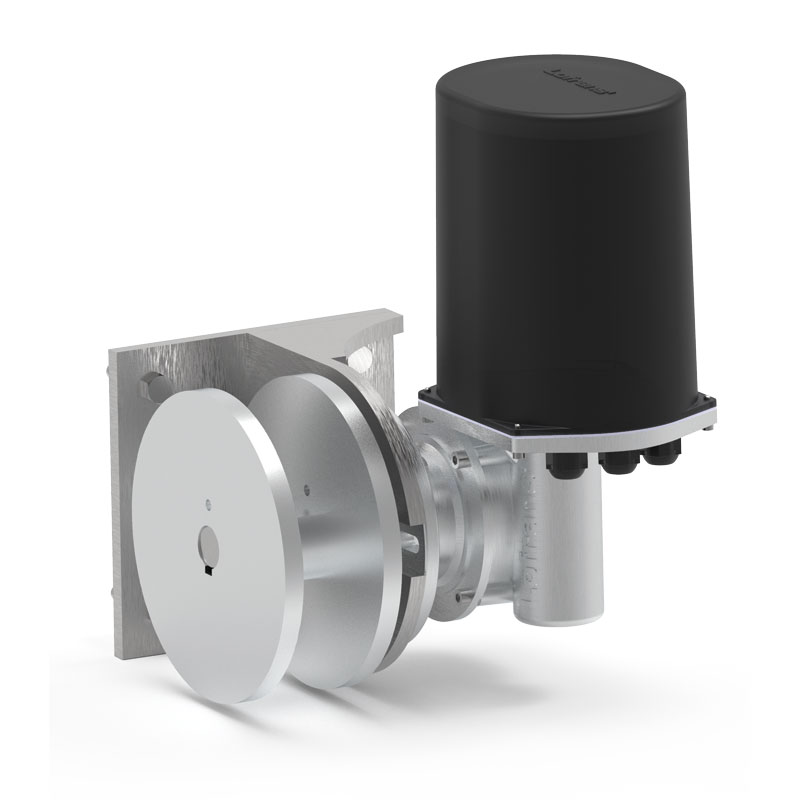

• Designed to recover a small tender or a jet ski • Marine anodised aluminium construction • Heavy-duty electric motor and gearbox • IP67-rated motor cover with high protection from humidity & sea water • Strong aluminium drum able to contain the necessary belt • The drum is driven by using a high torque worm gear box with the gear case made in black marine anodised aluminium • The gears are made of bronze and steel in order to withstand the high stress during the intensive use • Wall-mounted installation |
Items / Versions
| Code | Description | Power | motor size | Max Pull | Working Load (kg) | Amps at Working Load (A) | Line speed at working load (m/min) | Max Line Speed (m/min) | Net Weight with drum (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 601004 | TENDER CAPSTAN ALU 1000W/24V | 12 V | 24 V | 1000 W | 1060 | 200 kg | 135 | 70 | 23(m/min) | 40(m/min) | 9-10 kg |
