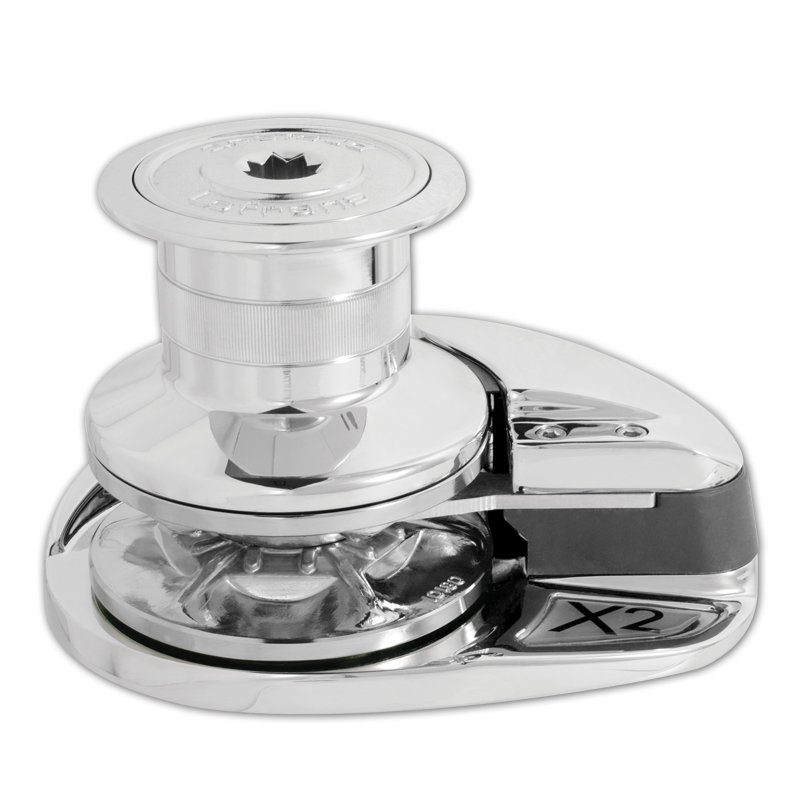

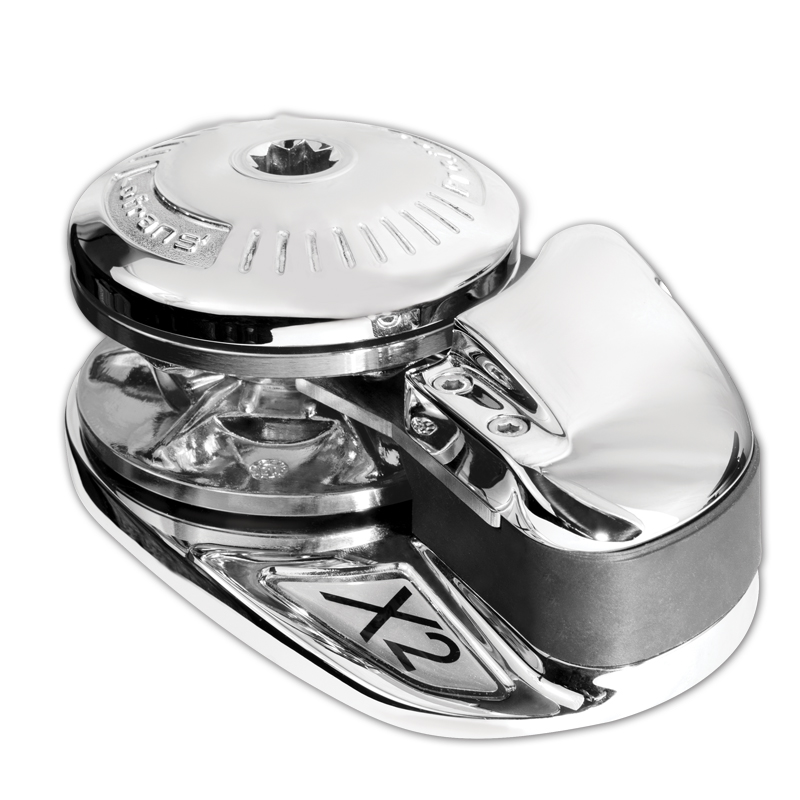

X2 - Vertical Windlass
The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.
Product Description
Main Features:
- Luxury chrome broze base and drum
- Special watertight stainless steel ball bearing in the base
- With drum or Low profile
- Indepent Gypsy and drum operation
- Rope and chain combinaton Gypsy
- Manual chain release
- Manual override available for chromed bronze models only (800W chrome variant does not have the manual override function).
- Rope chain management by the spring loaded arm
- Chain counter magnet pre-installed as standard
- IP67 rated heavy duty electric motor
- Anodised marine aluminium gearbox
- Control Box included in package
Standard Equipment:
- Dual direction solenoid pack
- Handle
- Gypsy for chain
- CD / Instruction manual
The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.
The standard features that you can meet in every X series windlass are:
- Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
- The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
- The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
- There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
- Manual override so that the chain or rope can be recovered manually in case of electric function failure (800W chrome variant does not have the manual override function).
Items / Versions
Code | Description |
---|---|
187273 | WINDLASS V. X2 CRO 1500W/12V 10DIN766 |
187274 | WINDLASS V. X2 CRO G+D 1500W/12V 10DIN766 |
187276 | WINDLASS V. X2 CRO G+D 1500W/24V 10DIN766 |
472557 | WINDLASS V. X2 ALU 1000W/12V 8-5/16"BBB-5/16"HT |
472558 | WINDLASS V. X2 ALU 800W/12V 8-5/16"BBB-5/16"HT |
472735 | WINDLASS V. X2 ALU G+D 800W/12V 8-5/16"BBB-5/16"HT |
472750 | WINDLASS V. X2 ALU G+D 1000W/24V 8-5/16"BBB-5/16"HT |
472751 | WINDLASS V. X2 ALU G+D 1000W/12V 8-5/16"BBB-5/16"HT |
472861 | WINDLASS V. X2 CRO 800W/12V 8-5/16"BBB-5/16"HT |
472862 | WINDLASS V. X2 CRO G+D 800W/12V 8-5/16"BBB-5/16"HT |
472863 | WINDLASS V. X2 CRO G+D 1000W/12V 10 3/8 HT |
472864 | WINDLASS V. X2 CRO 1000W/12V 10 3/8 HT |
473212 | WINDLASS V. X2 CRO G+D 1000W/12V 8-5/16"BBB-5/16"HT |
473213 | WINDLASS V. X2 CRO 1000W/12V 8-5/16"BBB-5/16"HT |
473226 | WINDLASS V. X2 CRO 1000W/24V 10DIN766 |
473227 | WINDLASS V. X2 CRO G+D 1000W/24V 10DIN766 |
473255 | WINDLASS V. X2 CRO G+D 1000W/24V 8-5/16"BBB-5/16"HT |
478642 | WINDLASS V. X2 CRO 1000W/24V 10 3/8 HT |
57450 | WINDLASS V. X2 ALU 1000W/12V 10 3/8 HT |
600044 | WINDLASS V. X2 ALU G+D 800W/12V 6mm |
600045 | WINDLASS V. X2 ALU 800W/12V 6mm |
600046 | WINDLASS V. X2 CRO G+D 800W/12V 6mm |
600047 | WINDLASS V. X2 CRO 800W/12V 6mm |
600049 | WINDLASS V. X2 ALU G+D 1000W/12V 6mm |
600050 | WINDLASS V. X2 ALU 1000W/12V 6mm |
600053 | WINDLASS V. X2 ALU G+D 1000W/12V 10 3/8 HT |
600054 | WINDLASS V. X2 CRO 1000W/24V 8-5/16"BBB-5/16"HT |
600056 | WINDLASS V. X2 ALU G+D 1500W/12V 10 3/8 HT |
600057 | WINDLASS V. X2 ALU G+D 1500W/12V 8-5/16"BBB-5/16"HT |
600060 | WINDLASS V. X2 ALU G+D 1500W/24V 10 3/8 HT |
600061 | WINDLASS V. X2 ALU G+D 1500W/24V 8-5/16"BBB-5/16"HT |
600989 | WINDLASS V. X2 CRO 1000W/12V 6mm |
600997 | WINDLASS V. X2 CRO G+D 1000W/12V 6mm |
601006 | WINDLASS V. X2 CRO 1500W/12V 8-5/16BBB-5/16HT |
601008 | WINDLASS V. X2 CRO 1500W/12V 10 3/8 HT |
601011 | WINDLASS V. X2 CRO G+D 1000W/24V 10 3/8 HT |
601013 | WINDLASS V. X2 CRO G+D 1500W/12V 10 3/8 HT |
601016 | WINDLASS V. X2 CRO 700W/24V 6mm |
601018 | WINDLASS V. X2 CRO 700W/24V 8-5/16"BBB-5/16"HT |
601028 | WINDLASS V. X2 CRO 1000W/24V 6mm |
601034 | WINDLASS V. X2 CRO G+D 1000W/24V 6mm |
601041 | WINDLASS V. X2 CRO 1500W/24V 10DIN766 |
601044 | WINDLASS V. X2 CRO G+D 1500W/24V 10 3/8 HT |
601052 | WINDLASS V. X2 ALU G+D 1000W/12V 10DIN766 |
601053 | WINDLASS V. X2 ALU 1500W/12V 8-5/16BBB-5/16HT |
601054 | WINDLASS V. X2 ALU 1500W/12V 10 3/8 HT |
601055 | WINDLASS V. X2 ALU 1500W/12V 10DIN766 |
601057 | WINDLASS V. X2 ALU G+D 1500W/12V 10DIN766 |
601058 | WINDLASS V. X2 ALU 1000W/24V 6mm |
601059 | WINDLASS V. X2 ALU 1000W/24V 8-5/16BBB-5/16HT |
601060 | WINDLASS V. X2 ALU 1000W/24V 10 3/8 HT |
601061 | WINDLASS V. X2 ALU 1000W/24V 10DIN766 |
601062 | WINDLASS V. X2 ALU G+D 1000W/24V 6mm |
601063 | WINDLASS V. X2 ALU G+D 1000W/24V 10 3/8 HT |
601064 | WINDLASS V. X2 ALU G+D 1000W/24V 10DIN766 |
601065 | WINDLASS V. X2 ALU 1500W/24V 8-5/16''BBB-5/16''HT |
601066 | WINDLASS V. X2 ALU 1500W/24V 10 3/8 HT |
601067 | WINDLASS V. X2 ALU 1500W/24V 10DIN766 |
601068 | WINDLASS V. X2 ALU G+D 1500W/24V 10DIN766 |
602096 | WINDLASS V. X2 CRO G+D 1000W/12V 10DIN766 |
602097 | WINDLASS V. X2 CRO 1000W/12V 10DIN766 |
602529 | WINDLASS V. X2 CRO 1500W/24V 10 3/8 HT |
