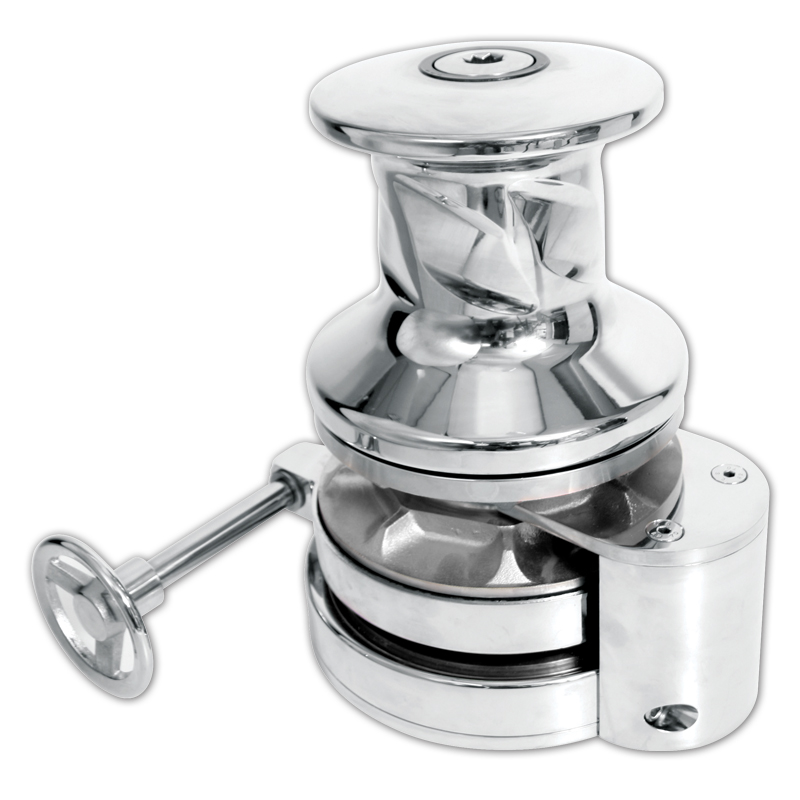

SX5 - Vertical Windlass

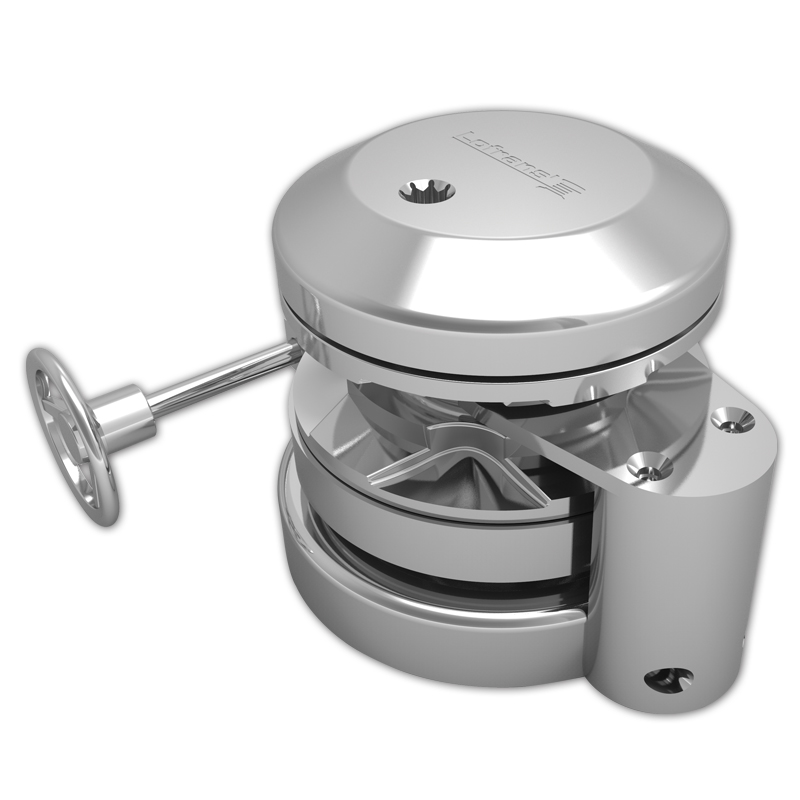

Vertical Windlass SX5 - includes features like Luxury 316 L stainless steel base and drum, Vertical Windlass X3.5With drum or Low profile, Independent Gypsy and drum operation, Manual chain release, Chain counter magnet pre-installed as standard
Product Description
Main features:
- Luxury stainless steel base and drum
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- Chain counter magnet pre-installed as standard
- Anodised marine aluminium gearbox
- Heavy-duty electric motor
- Chain pipe available as an option
Standard Equipment:
- Dual direction solenoid pack
- Handle
- Gypsy for chain
- CD / Instruction manual
- Chain pipe also available as an option, code 636314
The standard features that you can meet in every SX series windlass are:
- Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
- The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
- The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
- There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
- Compact round base design constructed with Marine AISI 316L Stainless Steel
Items / Versions
Code | Description |
---|---|
600089 | WINDLASS V. SX5 S/S G+D 3000W/24V 12-13DIN766 |
600091 | WINDLASS V. SX5 S/S G+D 3000W/24V 14mm |
602389 | WINDLASS V. SX5 S/S G+D HYD/ 12-13DIN766 |
602390 | WINDLASS V. SX5 S/S G+D CW HYD/ 14mm |
602392 | WINDLASS V. SX5 S/S G+D CCW HYD/ 14mm |
636296 | WINDLASS V. SX5 INOX ROUND CLOCKWISE 3000W/24V 12-13 DIN 766 |
636463 | WINDLASS V. SX5 S/S G+D R 3000W/24V 14mm |
Documents
SX5 MANUAL |
---|
