Product Description

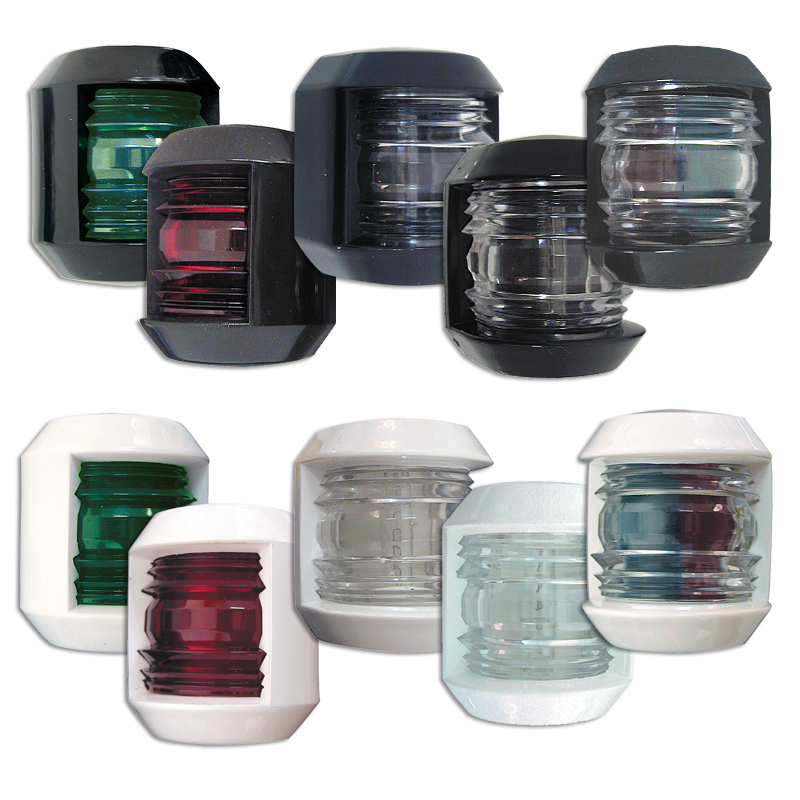

JUNIOR 7 series of navigation lights is designed for boats up to 7m length. The lights are waterproof, non-corrosive and non-magnetic. They are very easy to mount and their small size makes them very
discreet but without compromising their effectiveness. This range is provided with a two sided adhesive tape and flange, which by sticking it on the surface you know exactly where to open the hole and
the flange is already in the correct place.
• Material: Nylon fibre mix housing & shatterproof plexiglass (PMMA) lens
• Housing: Available in black and white housing
• Seal: Nitrile water resistant
• Installation: Side mounted
• Visible distance: Port - Starboard
– Bi-colour: 1nm / Stern - Masthead: 2nm
• Contacts: Brass
• Bulb (included): 12V / 5W
Items / Versions
| Code | Description |
|---|---|
| 30821 | JUNIOR 7 Starboard Light 112,5°, with black housing |
| 30822 | JUNIOR 7 Port Light 112,5°, with black housing |
| 30823 | JUNIOR 7 Stern Light 135°, with black housing |
| 30824 | JUNIOR 7 Masthead Light 225°, with black housing |
| 30825 | JUNIOR 7 Bi-colour Light, with black housing |
| 30831 | JUNIOR 7 Starboard Light 112,5°, with white housing |
| 30832 | JUNIOR 7 Port Light 112,5°, with white housing |
| 30833 | JUNIOR 7 Stern Light 135°, with white housing |
| 30834 | JUNIOR 7 Masthead Light 225°, with white housing |
| 30835 | JUNIOR 7 Bi-colour Light, with white housing |
