Product Description
General Characteristics
- Automatic lighting control function
- Ideal for areas with increased humidity, such as boats, outdoor pathway lighting, parking areas etc.
- Suitable for 12/24V lamps
- Selection of the battery type (AGM, Flood & Gel)
- Waterproof (IP67)
- 100% protection against humidity
Technical Specifications
-Type of charging: 4 stages PWM charging (Bulk – PWM – Boost – Float)
- Rated solar input: 10A
- Rated load: 10A
- Regulation voltage: 14.4V
- Load disconnect: 11.08V
- Load reconnect: 12.58V
- Self-consumption: Max. 6mA
- Temperature: -35 to +55
- Terminals: For 2.5mm cables
- Protection against short circuit, over current, overload, reverse polarity, battery reverse current at night, high load voltage
- LED indications for charging, battery levels, low voltage, disconnect, etc.
- Weight: 250gr
- Dimensions: 140x70mm
Items / Versions
Code | Description |
---|---|

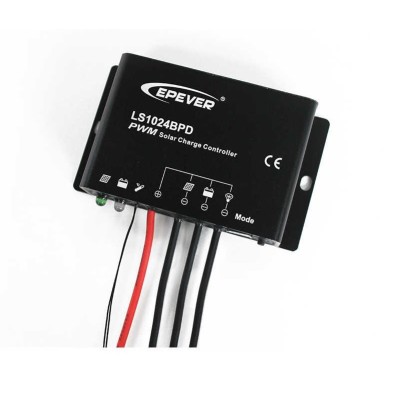

90287 | Solar Charge Controller, 12/24V |
