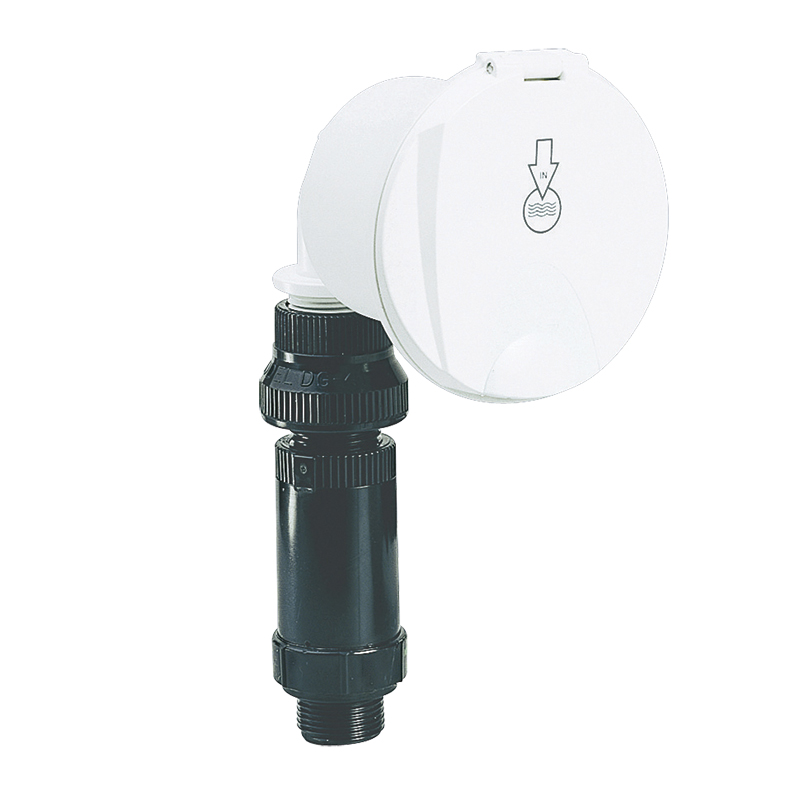

Cases with Fresh Water Inlet, with Lid

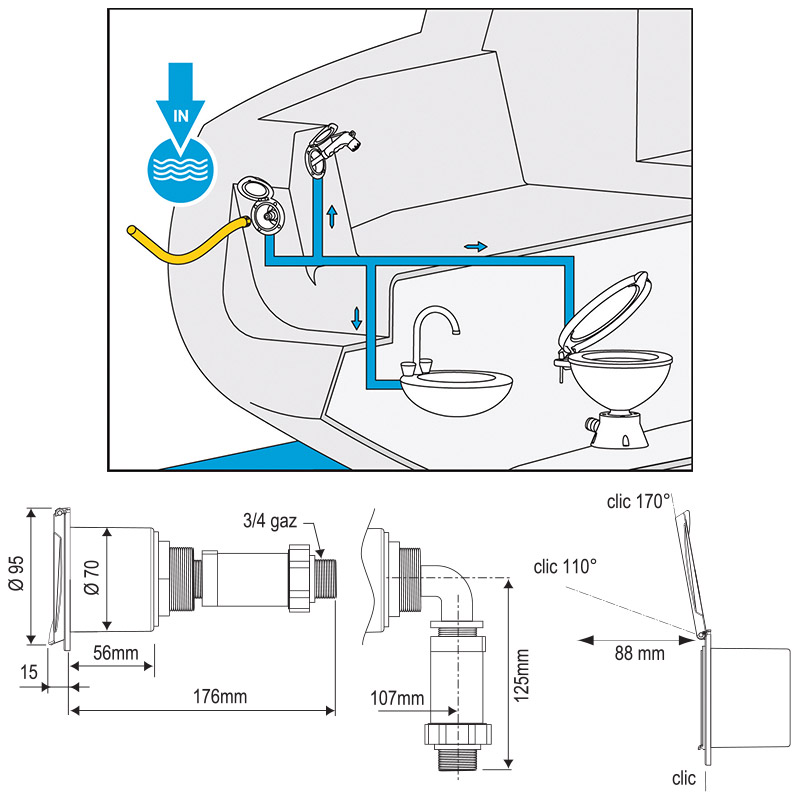

This is the perfect connection between the boat’s water network and the shore water supply. It is then easy to cook or have a shower when at the dock, without using water from the tanks (not suitable for filling the water tanks).
Product Description
This is the perfect connection between the boat’s water network and the shore water supply. It is then easy to cook or have a shower when at the dock, without using water from the tanks (not suitable for filling the water tanks).
The complete set (47812-5) includes:
• An ASA housing with plastic splash-proof cover
• A pressure regulator which accepts up to 5 bar working pressure, compatible with most appliances and equipment on board
• A non-return valve
• A male quick-coupling fitting for garden hose connection
• Male 3/4” threaded connector to the boat’s water system
The complete set (58131) includes:
• An ASA housing with plastic splash-proof cover
• A male quick-coupling fitting for garden hose connection
• Male 3/4” threaded connector to the boat’s water system
• Metal pressure regulator with cloth diaphragm valve, adjustable from 1,5 to 5 bar
• Maintenance free, robust construction with silent operation (no vibration)
• Max. inlet pressure: 15 bar
• Max. temperature: 70°C
• Corrosion preventing DZR brass body
• Factory preset (4 bar at zero discharge for 3 bar working)
• Diaphragm and seals EPDM & NBR
• Slotted adjusting screw that can be turned with a flathead screwdriver
• Female 1/4” pressure gauge outlet

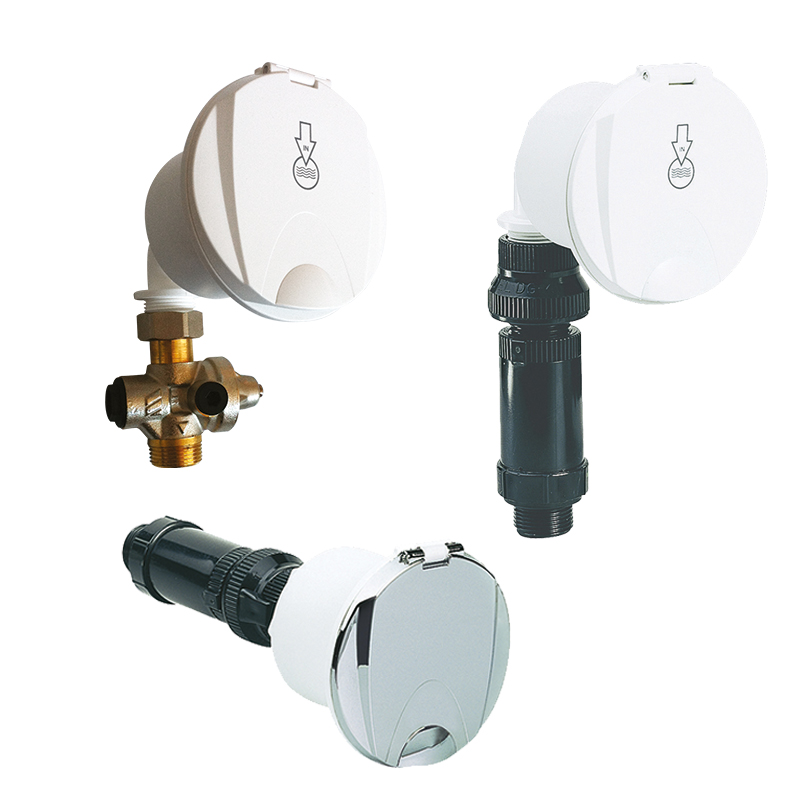

Items / Versions
Code | Description |
---|---|
47812 | Case w/Fr.Water Inlet, w/Lid, Straight Conn. White |
47813 | Case w/Fr. Water Inlet, w/Lid, Elbow Conn. White |
47814 | Case w/Fr. Water Inlet, w/Lid, Straight Conn. Chrome |
47815 | Case w/Fr. Water Inlet, w/Lid, Elbow Conn. Chrome |
58131 | Case Fr,Water. Inlet,1,5-5 BAR, Elbow Conn. White |
