Thru-Hull Threaded with Standard Flange_4906
Thru-Hull Threaded with Standard Flange_4906_4906 Thru-Hull Threaded with Standard Flange_4906_4907

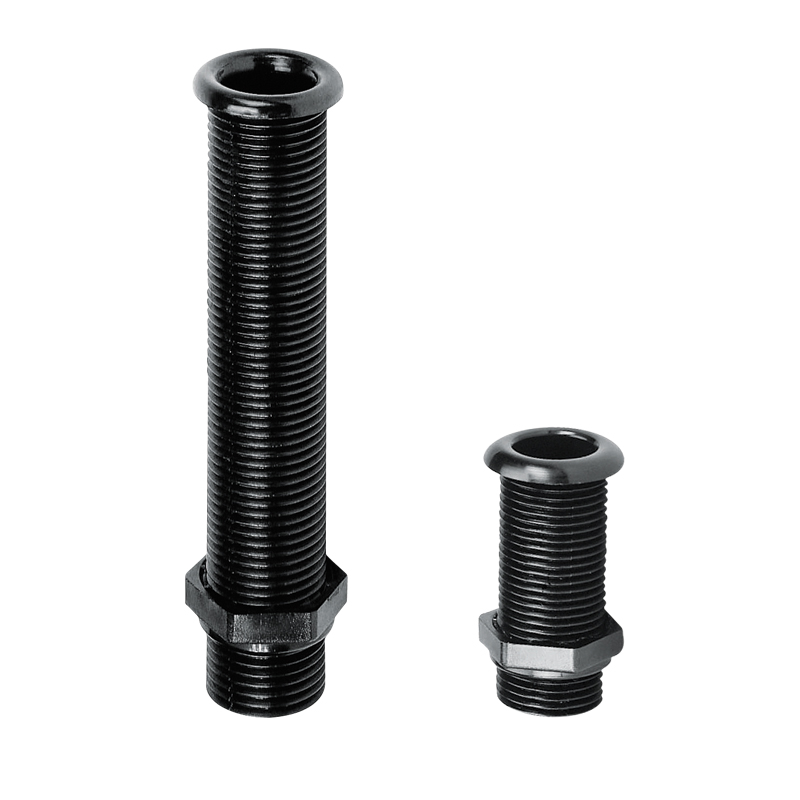

Thru-Hull Threaded with Standard Flange

Items / Versions

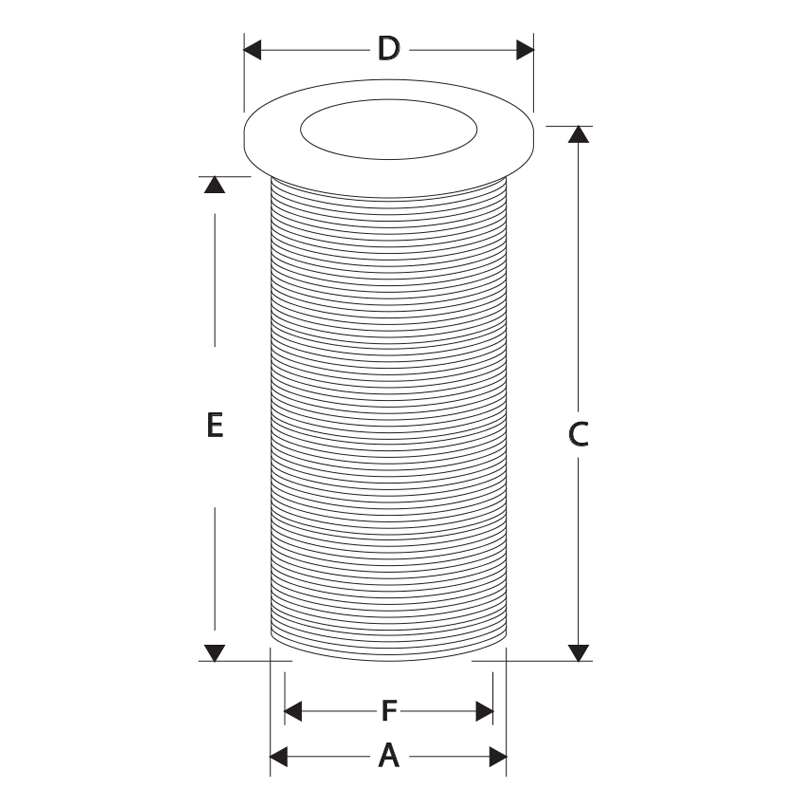

Code Description Color Material E C ØA ØD ØF
195527 Thru-Hull Stand.Flange, 3/4'',Int.Ø15mm, L153mm,White White PA 148 mm 153 mm 25 mm 39 mm 15 mm
196073 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L76mm, Black Black PA 70 mm 76 mm 33 mm 42 mm 25 mm
198067 Thru-Hull Stand.Flange, 3/4'',Int.Ø15mm, L153mm, Black Black PA 148 mm 153 mm 25 mm 39 mm 15 mm
43489 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm,White White PA 58 mm 62 mm 30 mm 39 mm 22 mm
43490 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm, Grey Grey PA 58 mm 62 mm 30 mm 39 mm 22 mm
43491 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm, Black Black PA 58 mm 62 mm 30 mm 39 mm 22 mm
43497 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,White White PA 150 mm 155 mm 30 mm 39 mm 22 mm
43498 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,Grey Grey PA 150 mm 155 mm 30 mm 39 mm 22 mm
43499 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,Black Black PA 150 mm 155 mm 30 mm 39 mm 22 mm
43527 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, White White PA 58 mm 62 mm 33 mm 40 mm 25 mm
43528 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, Grey Grey PA 58mm 62 mm 33 mm 40 mm 25 mm
43529 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, Black Black PA 57 mm 62 mm 33 mm 40 mm 25 mm
43535 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L155mm, White White PA 150 mm 155 mm 33 mm 39 mm 25 mm
43536 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L155mm, Grey Grey PA 150 mm 155 mm 33 mm 39 mm 25 mm
43537 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L155mm, Black Black PA 150 mm 155 mm 33 mm 39 mm 25 mm
47122 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L76mm, White White PA 70 mm 76 mm 33 mm 42 mm 25 mm
47755 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L62mm, Cream Cream PA 58 mm 62 mm 30 mm 39 mm 22 mm
47756 Thru-Hull Stand. Flange, 7/8'',Int.Ø22mm, L155mm,Cream Cream PA 150 mm 155 mm 30 mm 39 mm 22 mm
47758 Thru-Hull Stand. Flange, 1'',Int.Ø25mm, L62mm, Cream Cream PA 58 mm 62 mm 33 mm 40 mm 25 mm
