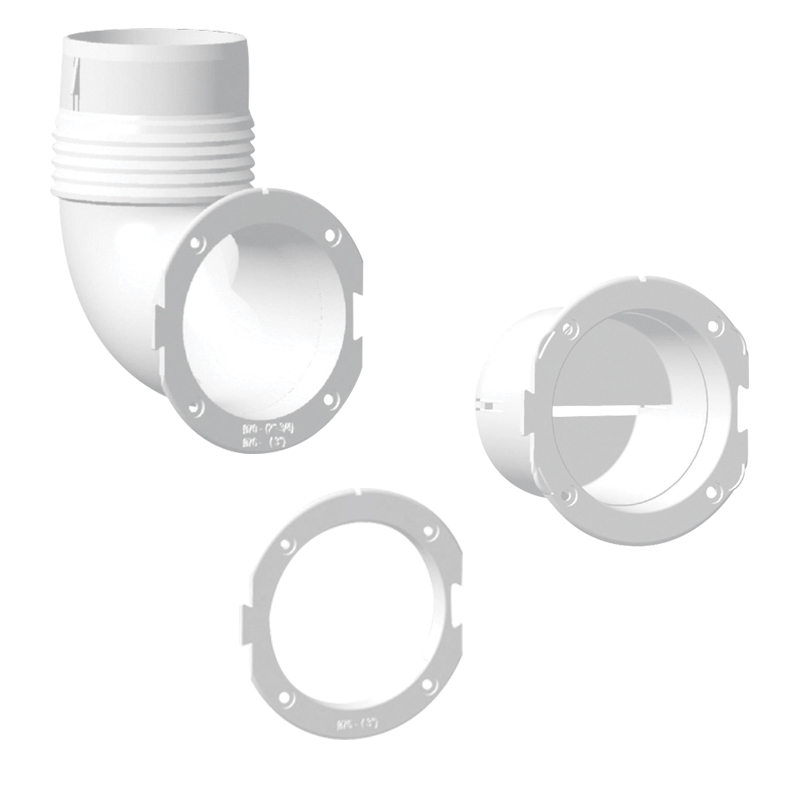

Ventilator Connector Ø 76mm

Suitable for Ø 76,2 and 70 mm ducting hose. Made of polypropylene for a good UV-resistance. It is extremely shock and load resistant, compatible with common sealants and impervious to acetic acids.

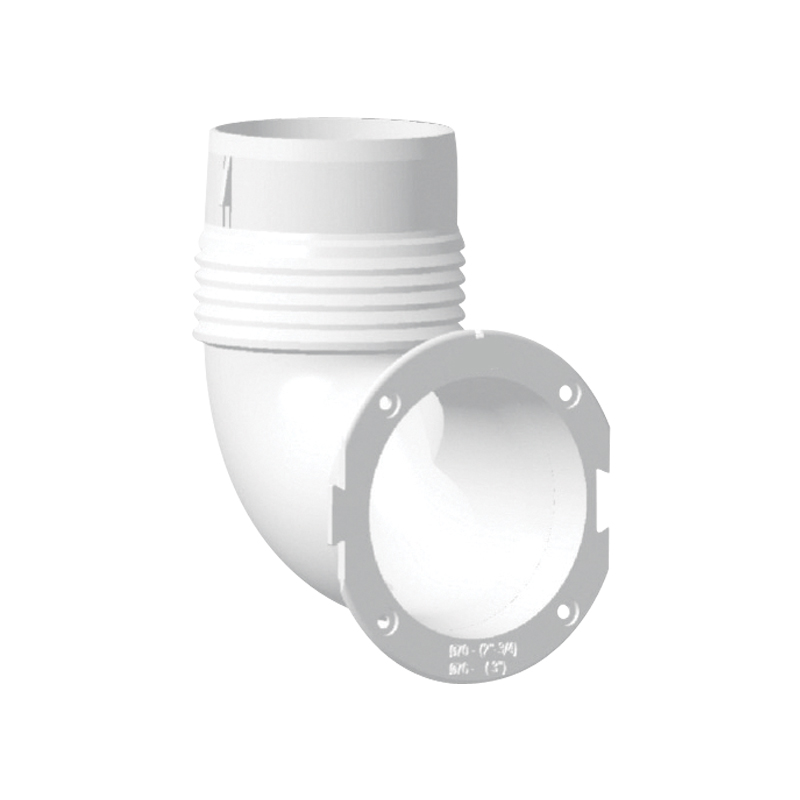

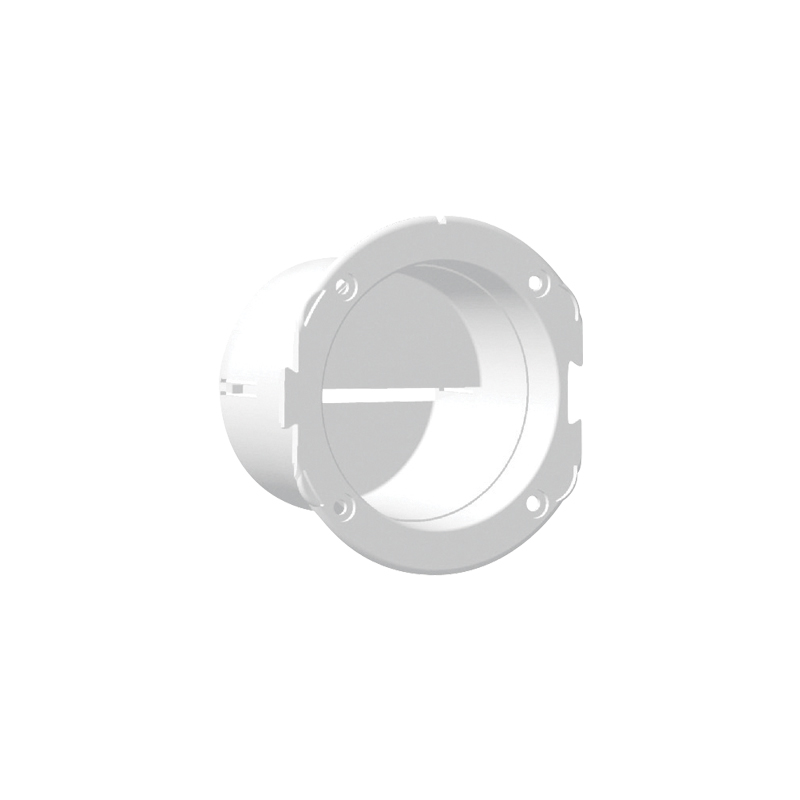

Made to support a hose along a bulkhead. On the straight model, ventilation is ensured by a louvered opening, which also prevents heavy water intrusions.

Quick and easy installation:

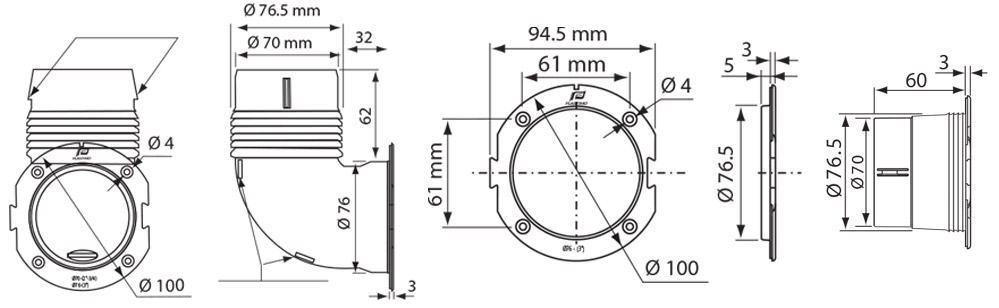

Drill a Ø 76,2 mm hole. Notches ensure the perfect hold of the adapter in the bulkhead.
Secure the adapter with 4 x M4 screws and sealant for waterproofness (compatible with most common sealants).
Clip a louvered vent if necessary: moulded-in ribs contribute to the vent’s secured position.
Fit the hose on the adapter.
Two lugs hold the hose, while waiting to be secured with stainless steel hose clips (not supplied).
