ZEFIRO Waste Water Tanks
ZEFIRO line of vertical waste water tanks is made of high-density polyethylene material in brown colour.
Product Description
ZEFIRO line of vertical waste water tanks is made of high-density polyethylene material in brown colour. Polyethylene material is used to prevent any waste odors. These tanks are designed with a gravity discharge technology that allows easier unloading of the tank without using a pump, when installation is carried out at more than 0.5 m above the waterline. Can be mounted on a bulkhead of the boat, saving space and time. The line consists of two models with capacity of 40L and 60L, complying with international standards and can safely store waste water from toilets until they can be discarded safely. All contain one inlet and two outlet threads of G 1 1/2” and a vent thread of G ¾. One straight and one elbow connector of G 1 1/2” thread and Ø 38 mm hose outlet are provided. They have an inspection hatch of Ø 127 mm, that can be removed for cleaning purposes. Contain a plate compatible with VDO standard senders and are compatible with diaphragm pumps and macerators (12 or 24 V).
Manufactured in accordance with ISO 8099.
Available customised solutions (colour or dimensions) upon request & sufficient quantities.
Items / Versions

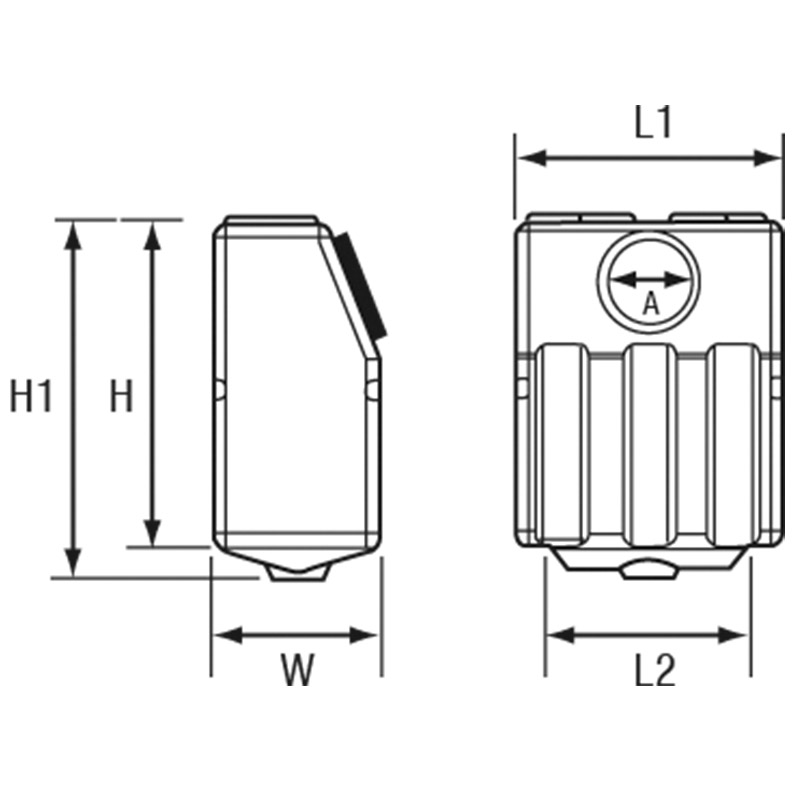

Code | Description | Length | Width | Height (cm) | Capacity | ØA | Overall Height | Overall Length |
---|---|---|---|---|---|---|---|---|
196881 | ZEFIRO Tank Waste Water 40lt Vertical | 302 mm | 250 mm | 493.7 mm | 40 lt | 133.5 mm | 540 mm | 400 mm |
196882 | ZEFIRO Tank Waste Water 60lt Vertical | 302 mm | 250 mm | 703.7 mm | 60 lt | 133.5 mm | 750.3 mm | 400 mm |
Documents
Zefiro_Tank_Manual |
---|
